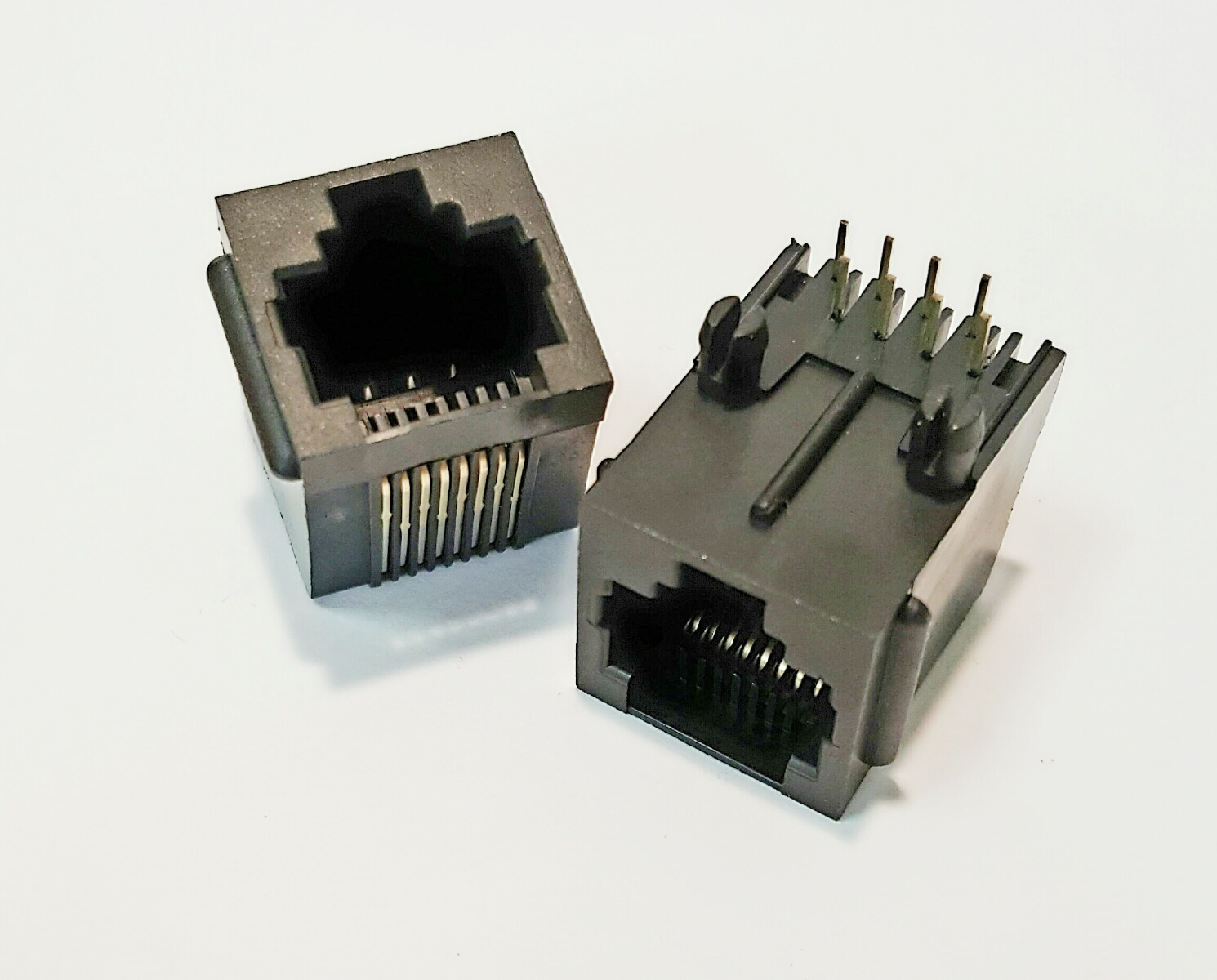

RJ45, Side Entry - AMJ-004

RJ45, Side Entry – AMJ-004

RJ45, Side Entry – AMJ-004

SKU: AMJ-004 Categories: , Tags: ,

RJ45, Side Entry Single Row 2.54mm – RJ45, Side Entry

Application & Features

RJ-45 connection meets CAT3, 5e and 6 Fast Ethernet
Hubs & Routers
Data/Communications
Gaming Systems
Handheld Terminals
Point of Sale (POS)

Specifications

Flame Rating: UL 94V-0
Insulator Resistance: 500 Megohms min
Contact Resistance: 20m ohms max
Current Rating: 1.5 Amps
Dielectric Voltage: 1000 Vrms at 1MA (60 seconds min)
Voltage Rating: 120V AC
Insulator Material: Polyester – Glass Filled
Max Processing Temp: 235℃ ±5℃ /5Sec
Spring Wire: 0.35mm thinkness over Phosphor Bronze Gold Plating over Nickel
Operating Temperature: -40° ~ +85° C
Mating Cycles: 500 Min.

Options

Green Options: RoHS Complaint
Color: Black
Contact Plating: Gold Flash – 50u
Gender: Male
Mount Type: Right Angle
Packaging: Tray
Solder Type: Through Hole (TH)
Type : Single
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
