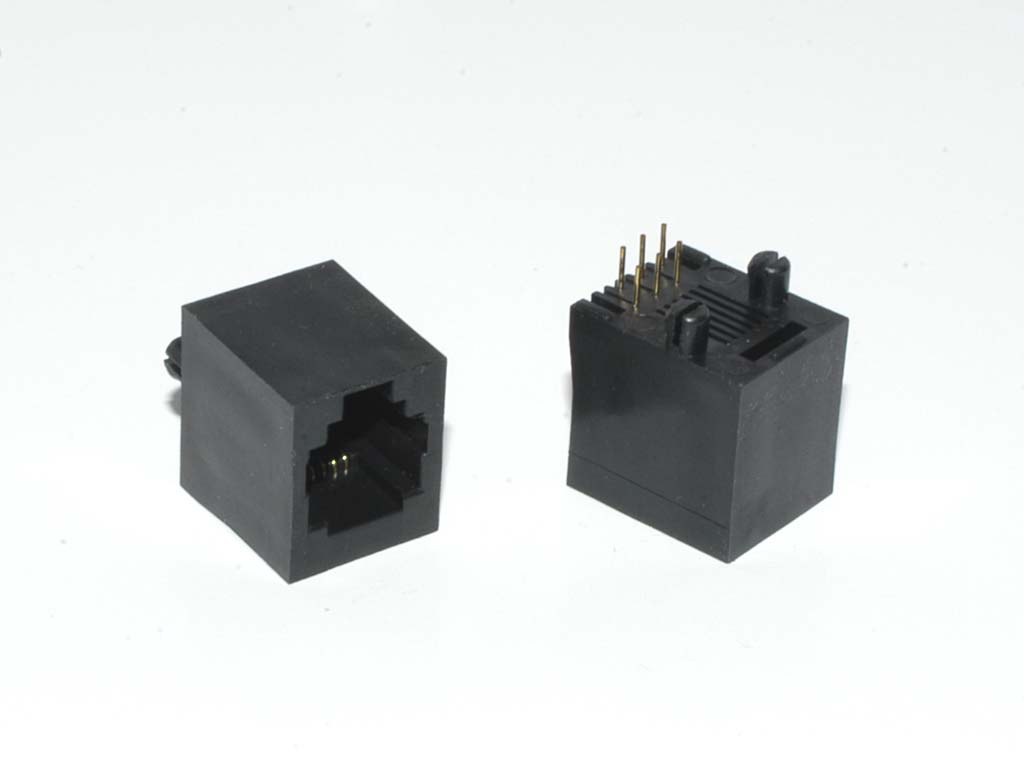

RJ11, Top Entry - AMJ-009

RJ11, Top Entry – AMJ-009

RJ11, Top Entry – AMJ-009

SKU: AMJ-009 Categories: , Tags: ,

RJ11, Top Entry Single Row 2.54mm – RJ11, Top Entry

Application & Features

RJ11 6P4C Registered Jack Standard
Industry Standard
Data/Communications
Electrical Devices
Point of Sale (POS)

Specifications

Flame Rating: UL 94V-0
Insulator Resistance: 500 Megohms min
Contact Resistance: 20m ohms max
Current Rating: 1.5 Amps
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +85° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Contact Plating: Gold over Nickel
Contact Area Plating: 6u – 50u

Options

Green Options: RoHS Complaint
Color: Black
Contact Plating: Selective Gold – 6u
Gender: Male
Mount Type: Right Angle
Packaging: Tray
Solder Type: Through Hole (TH)
Type : Single
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
