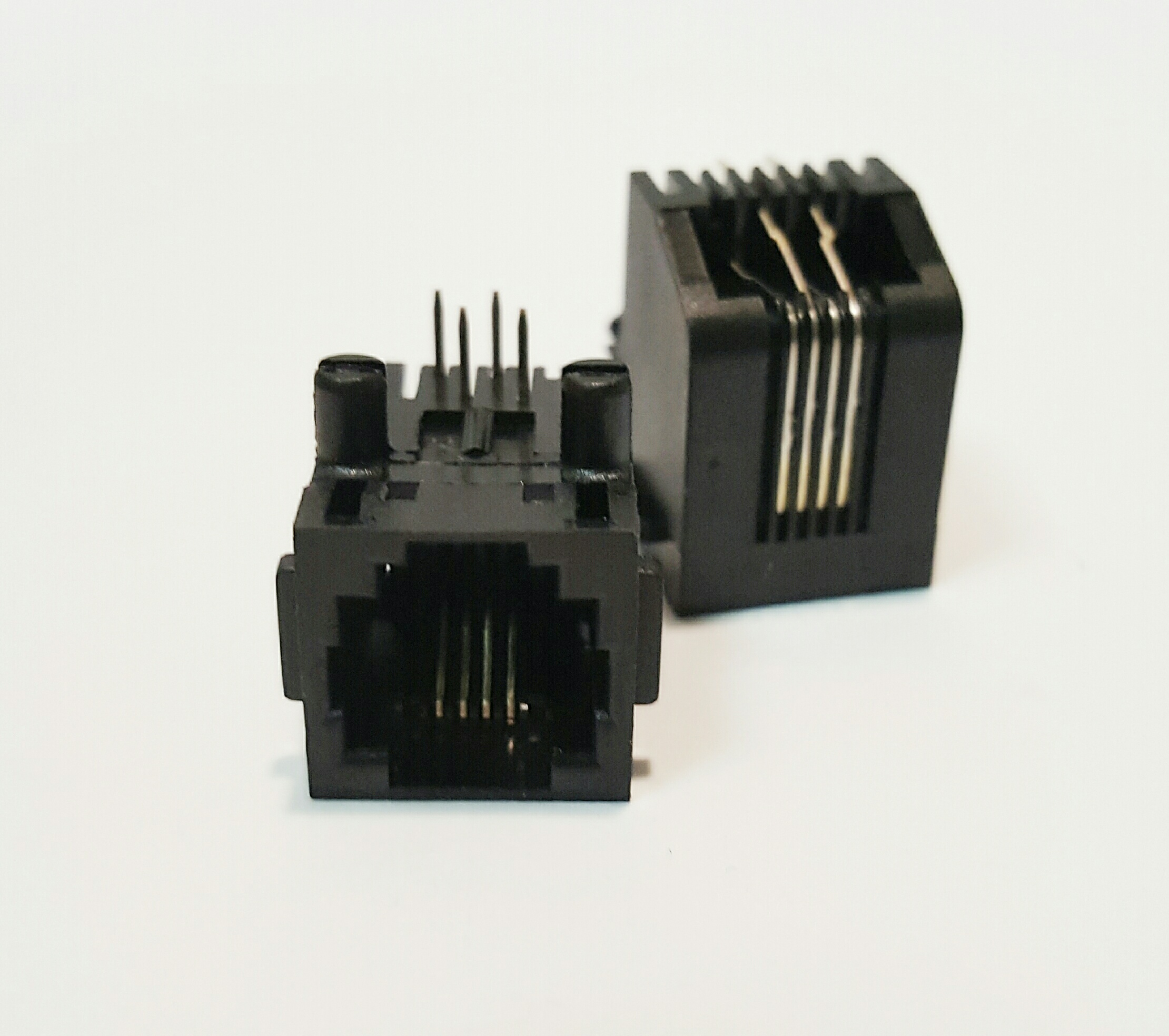

RJ11, Low Profile - AMJ-031

RJ11, Low Profile – AMJ-031

RJ11, Low Profile – AMJ-031

SKU: AMJ-031 Categories: , Tags: ,

RJ11, Low Profile Single Row 2.54mm – RJ11, Low Profile

Application & Features

RJ11 6P4C Registered Jack Standard
Industry Standard
Low Profile (LP)
Data/Communications
Point of Sale (POS)

Specifications

Flame Rating: UL 94V-0
Insulator Resistance: 500 Megohms min
Contact Resistance: 20m ohms max
Current Rating: 1.5 Amps
Dielectric Voltage: 1000 Vrms at 1MA (60 seconds min)
Voltage Rating: 120V AC
Insulator Material: Polyester – Nylon 6T
Max Processing Temp: PBT 235℃ /5Sec
Max Processing Temp: Nylon 260℃ /5Sec
Spring Wire: 0.35mm thinkness over Phosphor Bronze Gold Plating over Nickel
Operating Temperature: -40° ~ +85° C
Mating Cycles: 500 Min.

Options

Green Options: RoHS Complaint
Color: Black
Contact Plating: Gold Flash – 50u
Gender: Male
Mount Type: Right Angle
Packaging: Tray
Solder Type: Through Hole (TH)
Type : Single
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
