USB Type B 3.0 - BPB

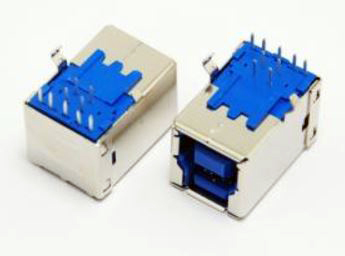

USB Type B 3.0 – BPB

USB Type B 3.0 – BPB

SKU: BPB Categories: , Tag:

USB Type B 3.0 Dual Row – USB Type B 3.0

Application & Features

USB 3.0 R/W 5Gbps (10x faster than USB 2.0)
Point of Sale (POS)
Printers
Public Traffic Lights and Safety
Electrical Devices
Hubs & Routers

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Contact Resistance: 50m ohms max
Insulator Resistance: 100 Megohms min
Dielectric Withstanding: AC 100V
Operating Temperature: -55° ~ +105° C
Housing: Standard LCP
Insulator Material: High Temperature Thermoplastic
Contact Material: Bronze

Options

Green Options: RoHS Complaint
Type: B Type USB
Mount Type: Right Angle
Contact Plating: Gold Flash – 15u
Packaging: Tray
Gender: Female
Insulator Color: Blue
Mount Type: Right Angle
Shell Plating: Brass, T=0.3 Ni-Plating
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
