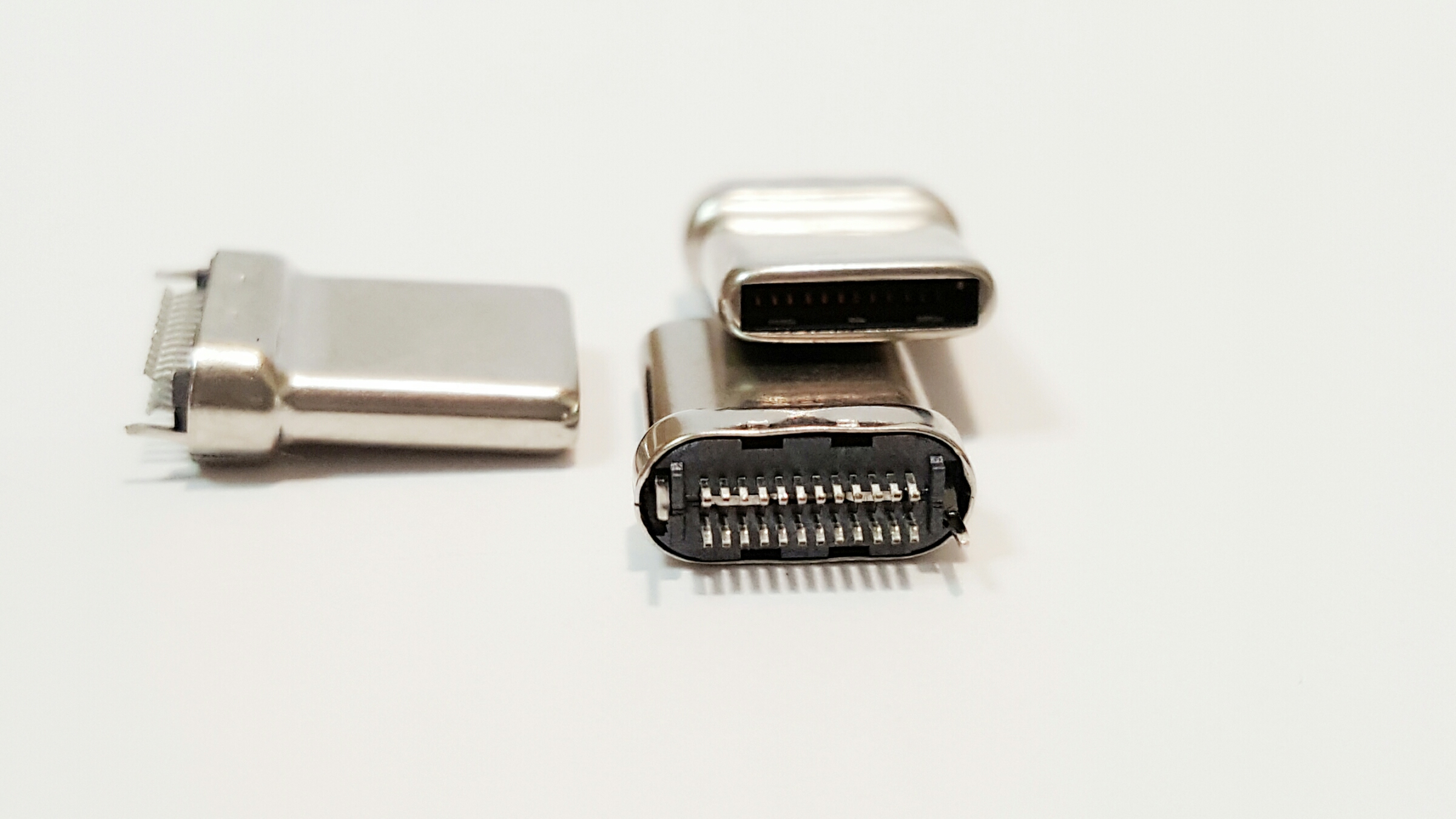

USB Type C Plug Extruded Type - BPC

USB Type C Plug Extruded Type – BPC

USB Type C Plug Extruded Type – BPC

SKU: BPC Categories: , Tags: ,

USB Type C Plug Extruded Type Dual Row 0.5mm – USB Type C Plug Extruded Type

Application & Features

USB-IF Association
TID Certified
Extruded Type
USB 3.1 SuperSpeed Gen 2 has a bandwidth of 10Gbps
Mobile Devices
Configuration Channel

Specifications

Current Rating: 5 Amps
Insulator Material: Thermoplastic
Contact Material: Copper Alloy
Shell Material: Stainless Steel (SUS304-1/2H)
Contact Underplate: 80u“~160 u“ Ni
Solder Tails: 100u”-150u” Tin (Lead-Free)
Operational Voltage: 20 V
Current Rating: 5 Amps
Insulator Resistance: 100 Megohms min @ 100 VDC
Dielectric Withstanding: 100 VAC / Minute
Operating Temperature: -40° ~ +105° C
Mating Cycles: 10000

Options

Green Options: RoHS Complaint
Mount Type: Straddle Mount
Gender: Male
Shell Plating: Nickel
PCB Thickness: 0.8mm
Packaging: Tray +Cap
Color: Black

Technical Sheets

Download PDF
Download CAD
