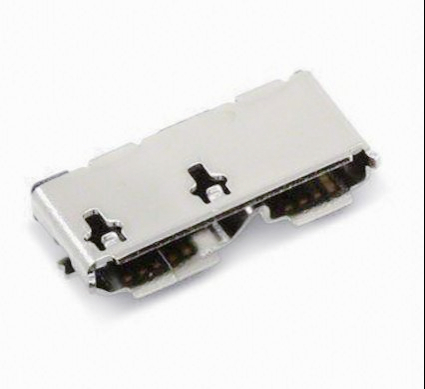

Micro USB 3.0 Receptacle DIP - BPM

Micro USB 3.0 Receptacle DIP – BPM

Micro USB 3.0 Receptacle DIP – BPM

SKU: BPM Categories: , Tag:

Micro USB 3.0 Receptacle DIP Single Row – Micro USB 3.0 Receptacle DIP

Application & Features

Exercise Equipment
Mobile Devices
Networking and Computer Cables
Notebook and Mobile Computing Applications
Hard Drives IDE
USB 3.0 R/W 5Gbps (10x faster than USB 2.0)

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Max Processing Temp: 245°C +/- 10℃ /5Sec
Insulator Material: High Temperature Thermoplastic
Insulator Material: Polyester – LCP
Contact Material: Copper Alloy
Conveyor Speed Requirement: 80cm/min
Contact Material: Copper Alloy

Options

Green Options: RoHS2 Directive 2011/65/EU
Type: Micro USB
Gender: Female
Contact Plating: Gold Flash – 15u
Mount Type: SMT+DIP
Shell Plating: Tin (Matte)
Color: Black

Technical Sheets

Download PDF
Download CAD
