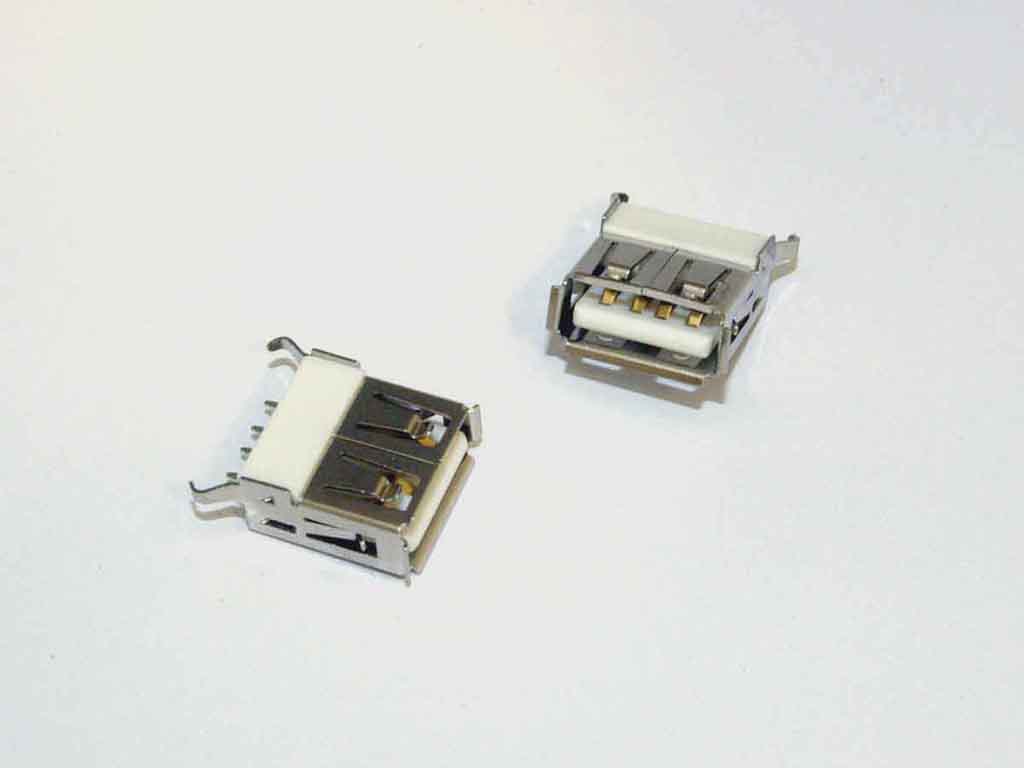

USB Type A 2.0 Vertical Straight - BPOA-105

USB Type A 2.0 Vertical Straight – BPOA-105

USB Type A 2.0 Vertical Straight – BPOA-105

SKU: BPOA-105 Categories: , Tags: ,

USB Type A 2.0 Vertical Straight Single Row 2mm – USB Type A 2.0 Vertical Straight

Application & Features

Data/Communications
USB 2.0 R/W 480 signaling rate of 480 megabits per second
USB-IF Association
Industry Standard
Space Saving Design

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Copper Alloy
Shell Material: Copper Alloy
Insulator Material: Thermoplastic
Finish: Gold Flash Contact Area
Mating Force: 4.0 Kg. max
UnMating Force: 0.7 Kg. max

Options

Green Options: RoHS Complaint
Type: A Type USB
Mount Type: Vertical Straight
Gender: Female
Color: Black, White
Contact Plating: Gold Flash – 30u

Technical Sheets

Download PDF
Download CAD
