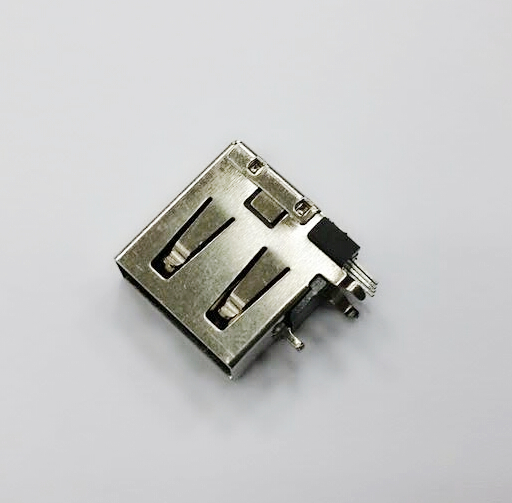

USB Type A 2.0 Vertical Right Angle – BPOA-2345

SKU: BPOA-2345 Categories: A Type, USB Tags: 2mm, Single

Description
Reviews (0)

USB Type A 2.0 Vertical Right Angle Single Row 2mm – USB Type A 2.0 Vertical Right Angle

Application & Features

Data/Communications
USB 2.0 R/W 480 signaling rate of 480 megabits per second
USB-IF Association
Industry Standard
Space Saving Design

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Copper Alloy
Shell Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic
Finish: Gold Flash Contact Area
Max Processing Temp: 260℃ ±5℃ /5Sec
Conveyor Speed Requirement: 80cm/min

Options

Green Options: RoHS Complaint
Type: A Type USB
Mount Type : Vertical Right Angle
Gender: Female
Color: Black, White
Contact Plating: Gold Flash – 30u

Technical Sheets

Download PDF
Download CAD
