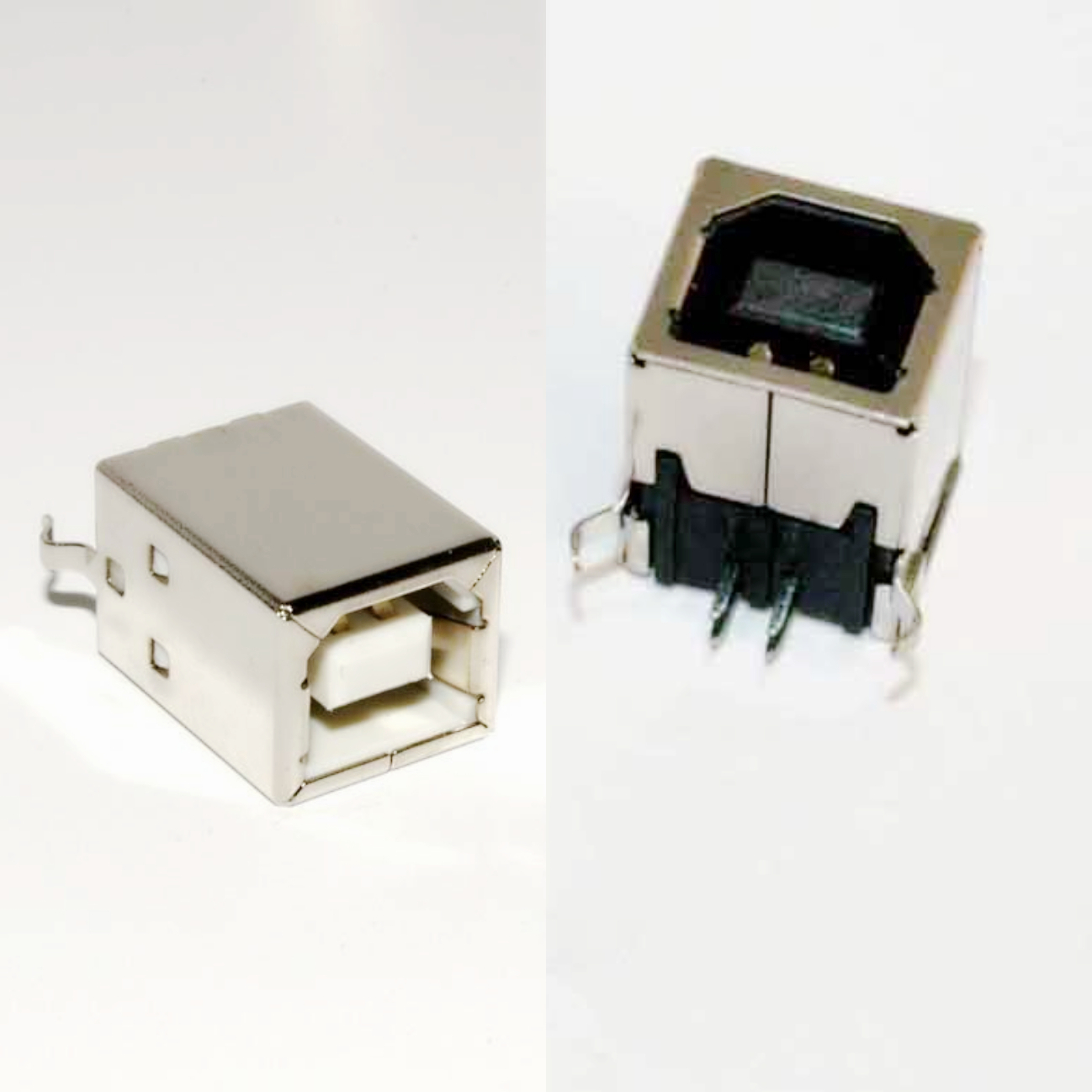

USB Type B 2.0 Single Row – USB Type B 2.0
Application & Features
USB 3.0 R/W 5Gbps (10x faster than USB 2.0)
Point of Sale (POS)
Printers
Public Traffic Lights and Safety
Electrical Devices
Hubs & Routers
Specifications
Flame Rating: UL 94V-0
Current Rating: 1 Amp
Contact Resistance: 30m ohms max
Insulator Resistance: 100 Megohms min @ 100 VDC
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Operating Temperature: -20° ~ +85° C
Insulator Material: Polyester – PBT
Contact Material: PhBz (CuSn)Tin Plated
Contact Area Plating: 3u”~30u” Gold
Finish: Tin Plated on Solder Area
Mating Force: 3.6 Kg. max
UnMating Force: 1.0 Kg Min
Options
Green Options: RoHS Complaint
Type: B Type USB
Mount Type: Straight or Right Angle
Contact Plating: Gold Flash – 30u
Packaging: Tray
Gender: Female
Insulator Color: Black
Options: See PDF/CAD for all details
Technical Sheets
Download Right Angle PDF Download Straight PDF
Download Right Angle CAD Download Straight CAD
