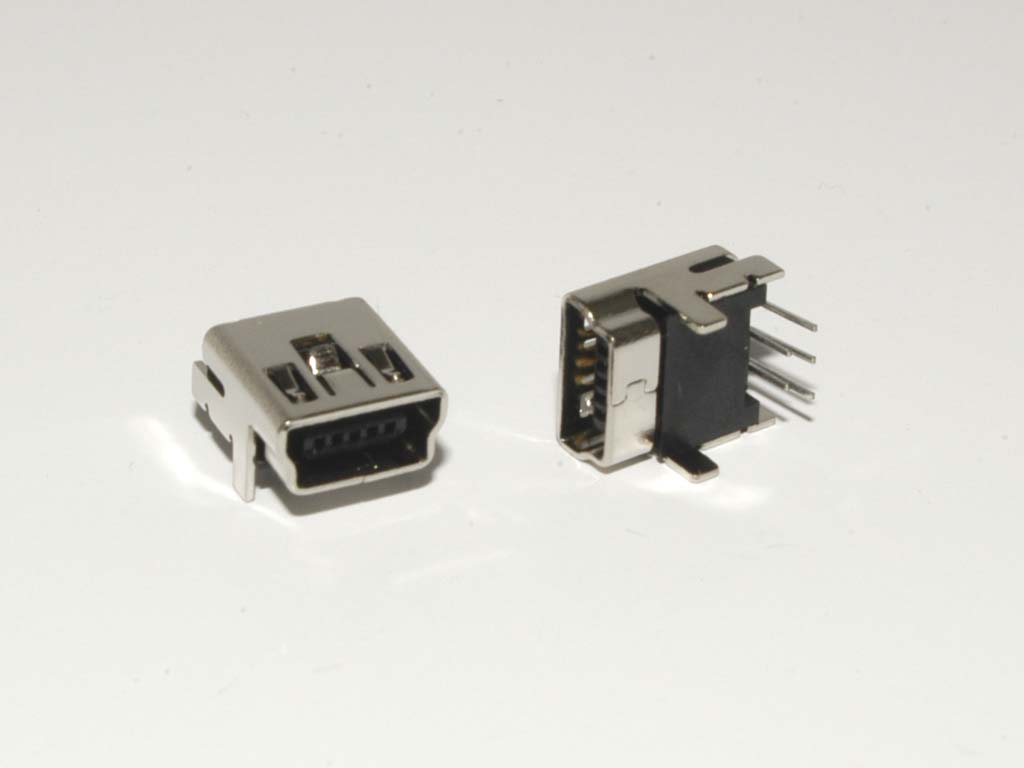

Mini USB 2.0 DIP – BPOM

Mini USB 2.0 DIP – BPOM

SKU: BPOM Categories: , Tags: ,

Mini USB 2.0 DIP Single Row 0.8mm – Mini USB 2.0 DIP

Application & Features

Mobile Devices
Gaming Systems
Industry Standard
Notebook and Mobile Computing Applications
PCB Motherboard
Exercise Equipment

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 100 Megohms min @ 500 VDC
Contact Resistance: 50m ohms max
Voltage Rating: 30V AC
Dielectric Withstanding: AC 100V
Mating Cycles: 5000
Insertion Force: 35N Max
Extraction Force: 7N Min.

Options

Green Options: RoHS Complaint
Type: Mini USB
Contact Plating: Gold
Contact Plating: Tin
Shell Plating: Nickel
Shell Plating: Tin (Matte)
Color: Black
Mount Type: Right Angle

Technical Sheets

Download PDF
Download CAD
