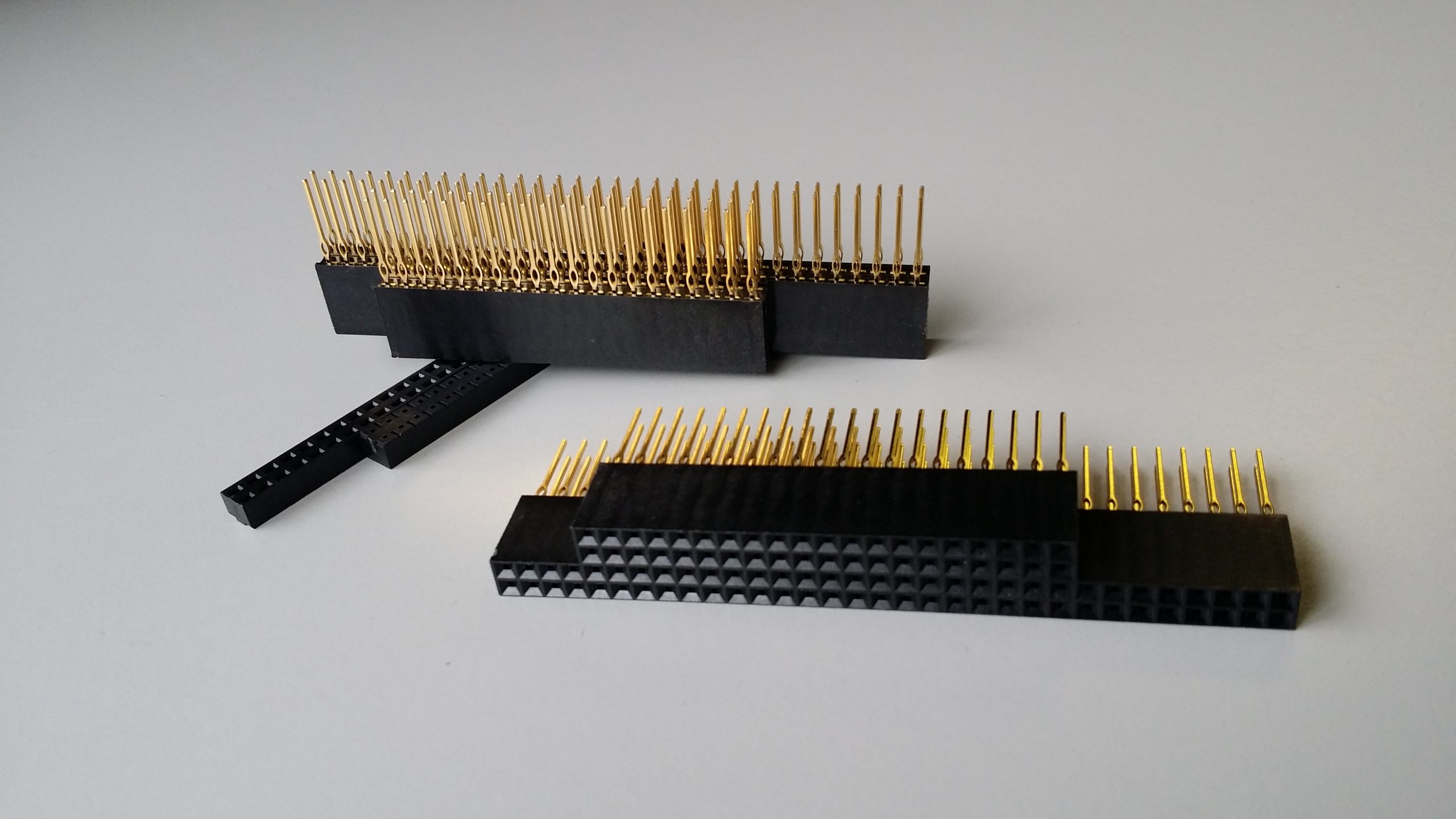

PC104 Combo 64/40 PressiFit Type 104p, Stacking - CPCL

PC104 Combo 64/40 PressiFit Type 104p, Stacking – CPCL

PC104 Combo 64/40 PressiFit Type 104p, Stacking – CPCL

SKU: CPCL Categories: , , Tags: ,

PC104 Combo 64/40 PressiFit Type 104p, Stacking Quad Row 2.54mm – PC104 Combo 64/40 PressiFit Type 104p, Stacking

Application & Features

PC104
Industry Standard
Ideal for board stacking applications
Motor & Power Controls
Automation Systems
High Mating Cycles

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -25° ~ +85° C
Contact Material: Phosphor Bronze
Insulator Material: PA-9T

Options

Green Options: RoHS2 Directive 2011/65/EU
Mount Type: Press-Fit
Contact Plating: Gold Flash – 30u
Gender: Female
Mount Type: Straight
Color: Black

Technical Sheets

Download PDF
Download CAD
