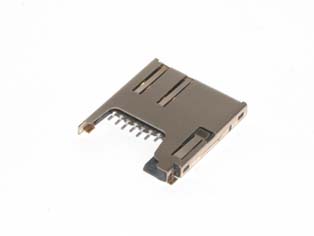

MicroSD Push-Push w/Spring Lock - CTSD

MicroSD Push-Push w/Spring Lock – CTSD

MicroSD Push-Push w/Spring Lock – CTSD

SKU: CTSD Categories: , Tag:

MicroSD Push-Push w/Spring Lock MicroSD Push-Push w/Spring Lock

Application & Features

Mobile Devices
Camera and Video
Industrial Equipment & Tools
Entertainment Industry
Gaming Systems
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Voltage Rating: 10V Max
Current Rating: 0.5 Amp
Contact Resistance: 100m ohms max
Voltage Rating: 500V AC
Operating Temperature: -25° ~ +85° C
Mating Cycles: 10000
Insulator Material: Polyester – LCP
Contact Material: Phosphor Bronze
Shell Plating: Stainless Steel
Contact Underplate: 50u”~100u” Nickel
Contact Area Plating: 15u” Selective Gold
Contact Area: 1u” Gold

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Packaging: Tray
Packaging: Tape & Reel (T&R)
Insulator Color: Black

Technical Sheets

Download PDF
Download CAD
