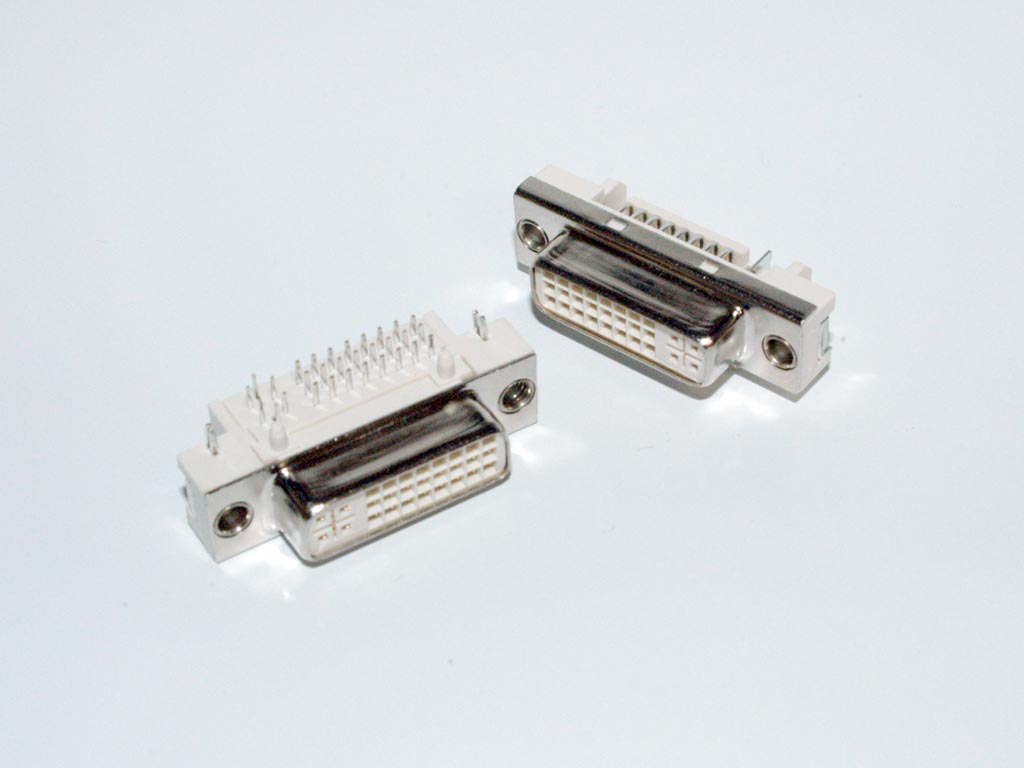

DVI Female Right Angle – DVI

DVI Female Right Angle – DVI

SKU: DVI Categories: , Tag:

DVI Female Right Angle DVI Female Right Angle

Application & Features

Entertainment Industry
Consumer Electronics
Data/Communications
Large-Scale Video Applications
Display Wall Controlers
Graphics

Specifications

Flame Rating: UL 94V-0
Current Rating: 1.5 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: DC 500V RMS +/- 50V, 60 Hz
Operating Temperature: -20° ~ +85° C
Shell Resistance: 50 Megohms Max.
Harpoon Material: Brass
Harpoon Plating: Tin over Nickel
Body&Latch Material: Nylon 66 + 33% Glass Filled
Mating Force: 4.5 Kg Max @ 25mm/minute
UnMating Force: 1.0 Kg Min and 4.0 Kg Max
Durability: 100 Mating Cycles

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Body Type: With or Without Flange
Color: White
Mount Type: Right Angle

Technical Sheets

Download 24 Position PDF
Download 29 Position PDF
Download 24 Position CAD
Download 29 Position CAD
