Solid connector solutions for the ever-changing electronic Industry.

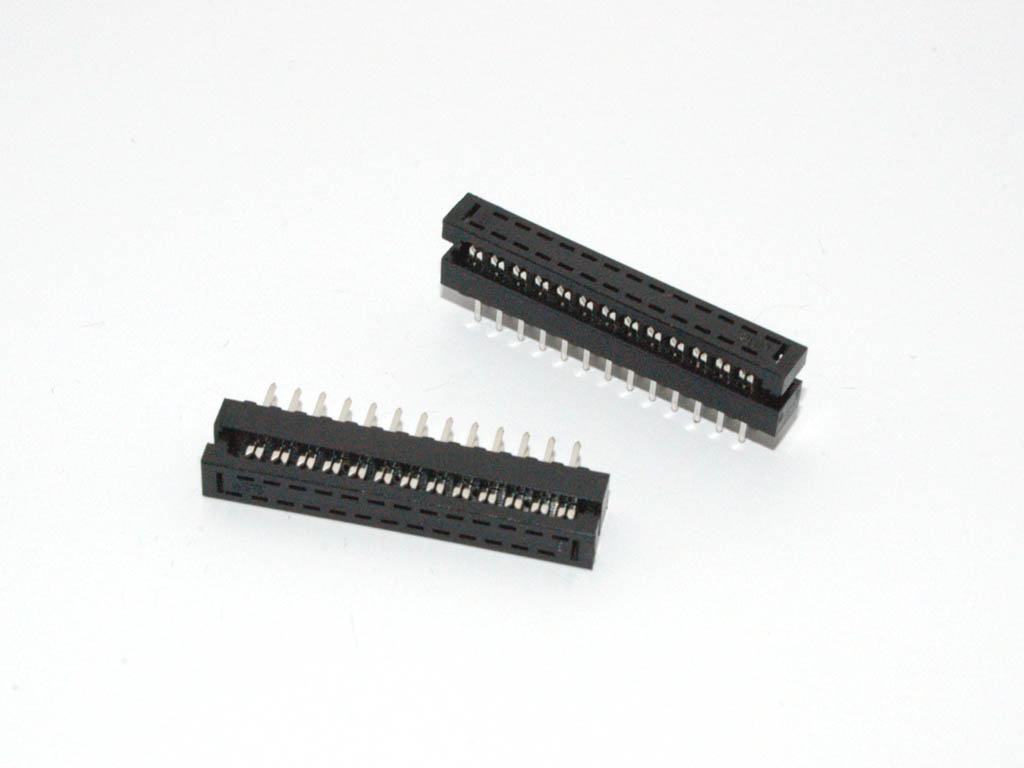

Transitional Plug - FTN

Transitional Plug – FTN

Transitional Plug – FTN

SKU: FTN Categories: , Tags: ,

Transitional Plug Dual Row 2mm – Transitional Plug

Application & Features

Low Profile (LP)
Low voltage applications
Insulation-piercing contacts
Telecommunications
Disconnect Applications
Ideal for interconnecting PCB’s in a permanent flat cable transition

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 3000 Megohms min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – PBT
Finish: Gold and Tin

Options

Green Options: RoHS Complaint
Mount Type: Straight
Packaging: Tray
Packaging: Tube
Color: Black
Contact Plating: Tin, Duplex Tin/Gold, Gold
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
