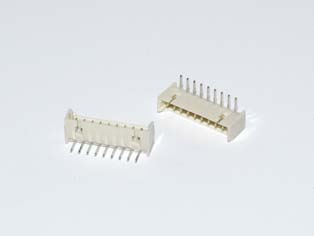

Wafer Connecor Right Angle – FWD

Wafer Connecor Right Angle – FWD

SKU: FWD Categories: , Tag:

Wafer Connecor Right Angle 1.25mm – Wafer Connecor Right Angle

Application & Features

High Power
High Density Harness Application
Exercise Equipment
Telecommunications

Specifications

Flame Rating: UL 94V-0
Voltage Rating: 100V AC/DC
Current Rating: 1 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 250V
Operating Temperature: -25° ~ +85° C
Contact Material: Brass
Insulator Material: Polyester – Nylon 46
Finish: Tin Plating

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin
Mount Type: Right Angle

Technical Sheets

Download PDF
Download CAD
