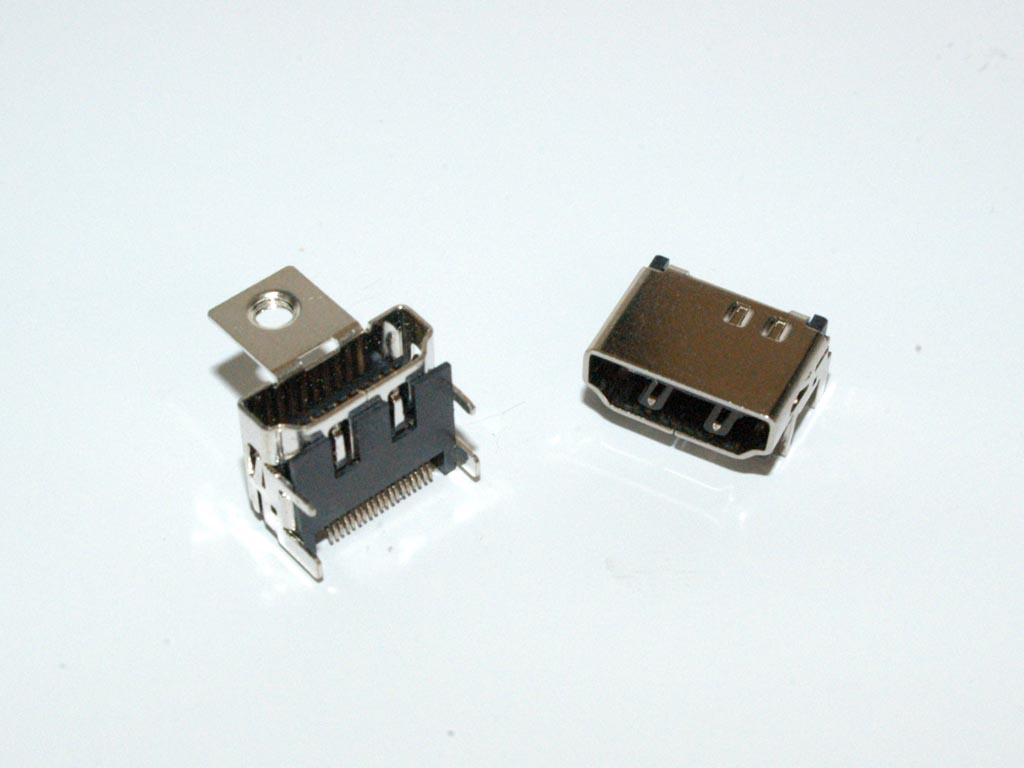

High Definition Multi-media Interface, AMT Right Angle without flange – HDMI

High Definition Multi-media Interface, AMT Right Angle without flange – HDMI

SKU: HDMI Categories: , Tag:

High Definition Multi-media Interface, AMT Right Angle without flange 0.5mm – High Definition Multi-media Interface, AMT Right Angle without flange

Application & Features

Camera and Video
CCTV
Industry Standard
Entertainment Industry
Consumer Electronics
Gaming Systems

Specifications

Flame Rating: UL 94V-0
Voltage Rating: 40V DC
Current Rating: 0.5 Amp
Insulator Resistance: 2000 Megohms min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 1200V
Operating Temperature: -20° ~ +85° C
Contact Material: Brass or Phosphor Bronze
Finish: Gold Plating over Nickel on contact, Tin Plated on Terminal
Shield: Brass
Shield Plating: Tin Plating over Nickel

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Mount Type: SMT
Color: LCP (Black)
Body Type: With or Without Flange
Packaging: Tray
Packaging: Reel(w/o Film)

Technical Sheets

Download Without Flange PDF
Download With Flange PDF
Download Without Flange CAD
Download With Flange CAD
