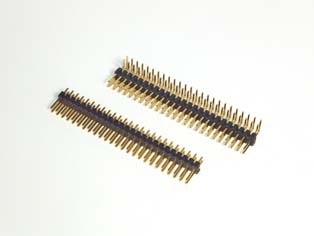

Pin Header - LHZ

Pin Header – LHZ

Pin Header – LHZ

SKU: LHZ Categories: , Tags: ,

Pin Header Dual Row 2.54mm – Pin Header

Application & Features

Digital Process Meters and Scales
Industrial Equipment
Multiple Height Options
Medical Instrumentation
PCB Motherboard
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +105° C
Contact Material: Copper Alloy
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area

Options

Green Options: RoHS2 Directive 2011/65/EU
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Gender: Male
Insulator Color: Black
Mount Type: Straight
Solder Type: Through Hole (TH)
Packaging: Bulk
Pin Length : Other Lengths Available

Technical Sheets

Download Straight PDF
Download Right Angle PDF
Download Straight CAD
Download Right Angle CAD
