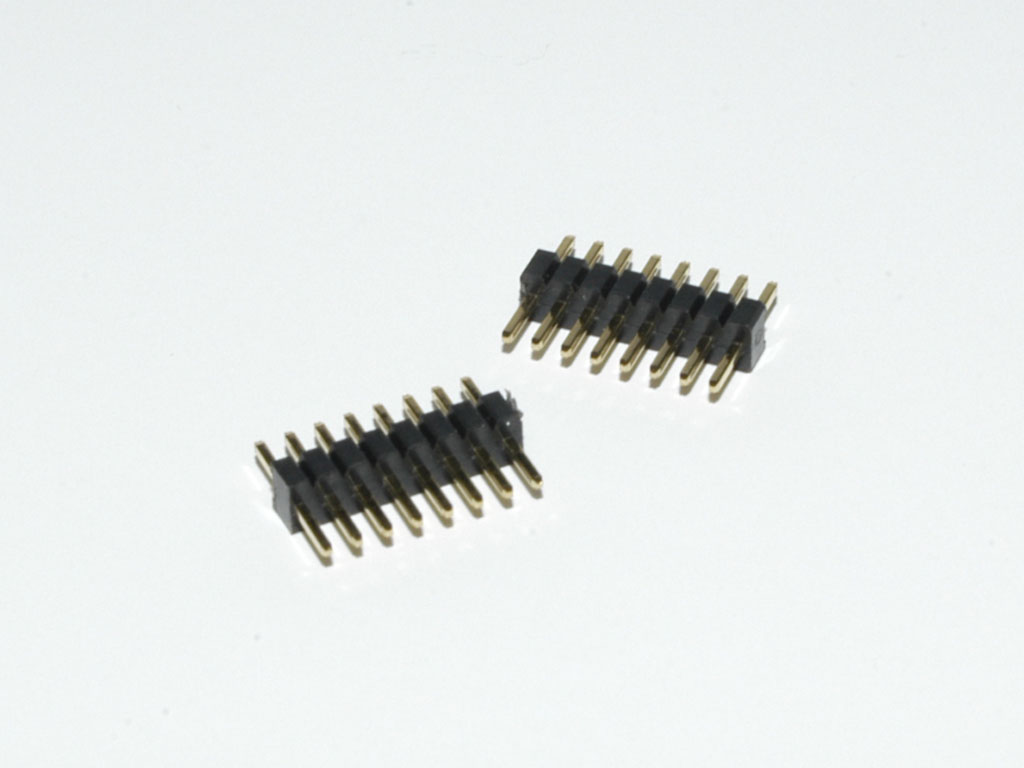

Pin Header - LRY

Pin Header – LRY

Pin Header – LRY

SKU: LRY Categories: , Tags: ,

Pin Header Single Row 1.27mm – Pin Header

Application & Features

PCB Motherboard
Data/Communications
Electrical Devices
Embedded control units
Handheld Terminals
Test & Measurement Equipment

Specifications

Flame Rating: UL 94V-0
Current Rating: 1.5 Amps
Insulator Resistance: 5000 Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 10 seconds)
Contact Material: Copper Alloy
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Pin Length : Other Lengths Available
Insulator Spacer Height: Other Hieghts Avail.
Contact Plating: Tin, Duplex, and Standard
Mount Type: Straight
Color: Black

Technical Sheets

Download PDF
Download CAD
