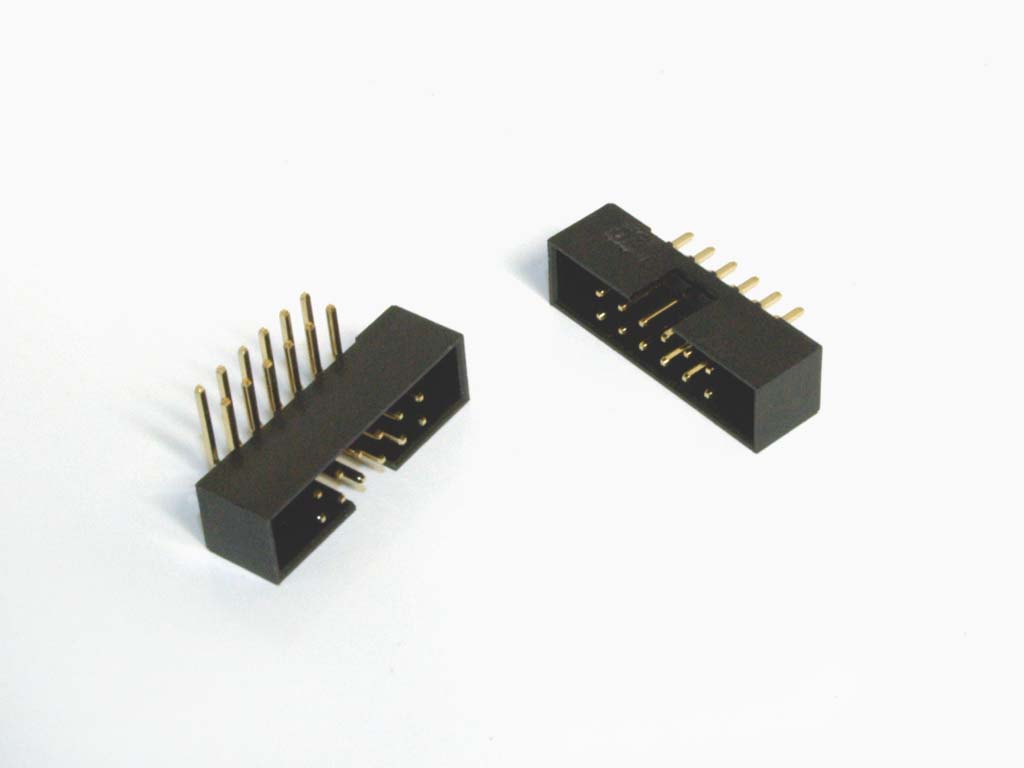

Shrouded Box Header DIP - MBH

Shrouded Box Header DIP – MBH

Shrouded Box Header DIP – MBH

SKU: MBH Categories: , Tags: ,

Shrouded Box Header DIP Dual Row 2mm – Shrouded Box Header DIP

Application & Features

PCB Motherboard
Gaming Systems
Medical Instrumentation
HVAC equipment and controls
Automation Systems
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 10 seconds)
Contact Material: Copper Alloy
Insulator Material: Polyester – Nylon 6T
Finish: Gold Flash Full Pin

Options

Green Options: RoHS2 Directive 2011/65/EU
Pin Type: Blunt Cut (Standard) or Formed Pins
Mount Type: Straight or Right Angle
Contact Plating: Tin, Duplex, and Standard
Pin Length : Other Lengths Available
Insulator Color: Black

Technical Sheets

Download Straight PDF
Download Right Angle PDF
Download Straight CAD
Download Right Angle CAD
