Shrouded Latching Header - MBHE

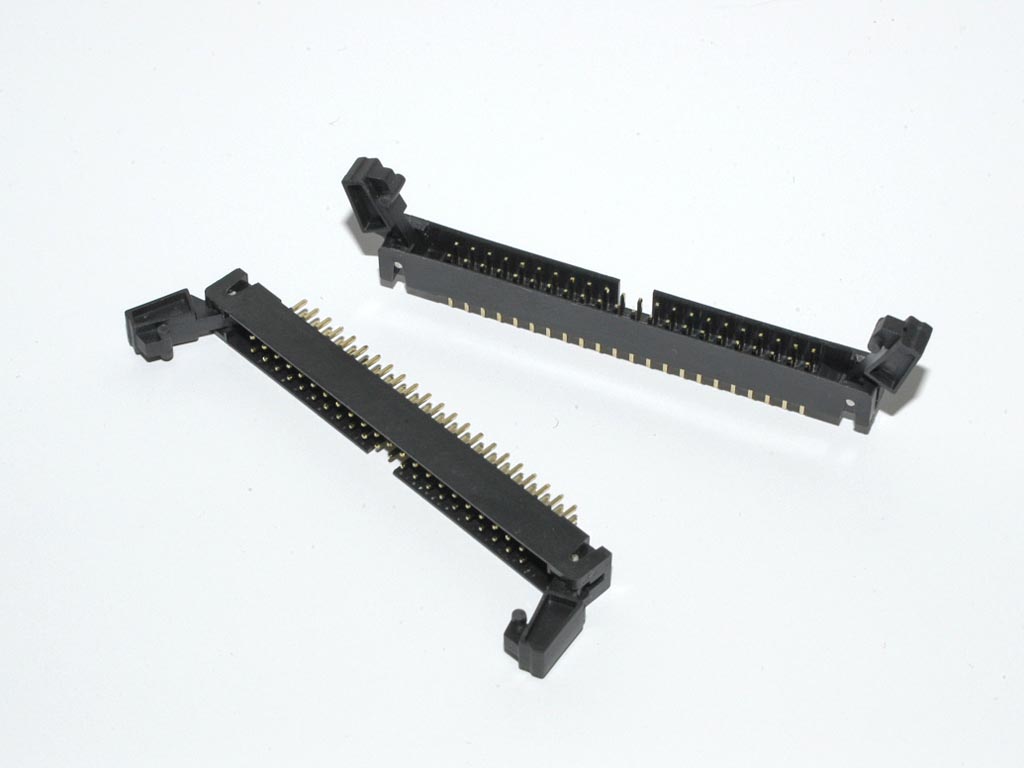

Shrouded Latching Box Header – MBHE

Shrouded Latching Box Header – MBHE

SKU: MBHE Categories: , Tags: ,

Shrouded Latching Box Header Dual Row 2mm – Shrouded Latching Box Header

Application & Features

PCB Motherboard
Automotive
Data/Communications
High Shock and Vibration
Embedded control units
Robotics

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Dielectric Withstanding: 800V AC Ohms Min. at 500V DC
Operating Temperature: -55° ~ +105° C
Housing: Nylon 6T, Black
Terminal: Sq 0.50mm Brass, Gold Plating

Options

Green Options: RoHS2 Directive 2011/65/EU
Mount Type: Straight or Right Angle
Gender: Male
Contact Plating: Tin, Duplex, and Standard
Insulator Color: Black
Packaging: Tray

Technical Sheets

Download Right Angle/Staright PDF
Download Right Angle/Staright CAD
