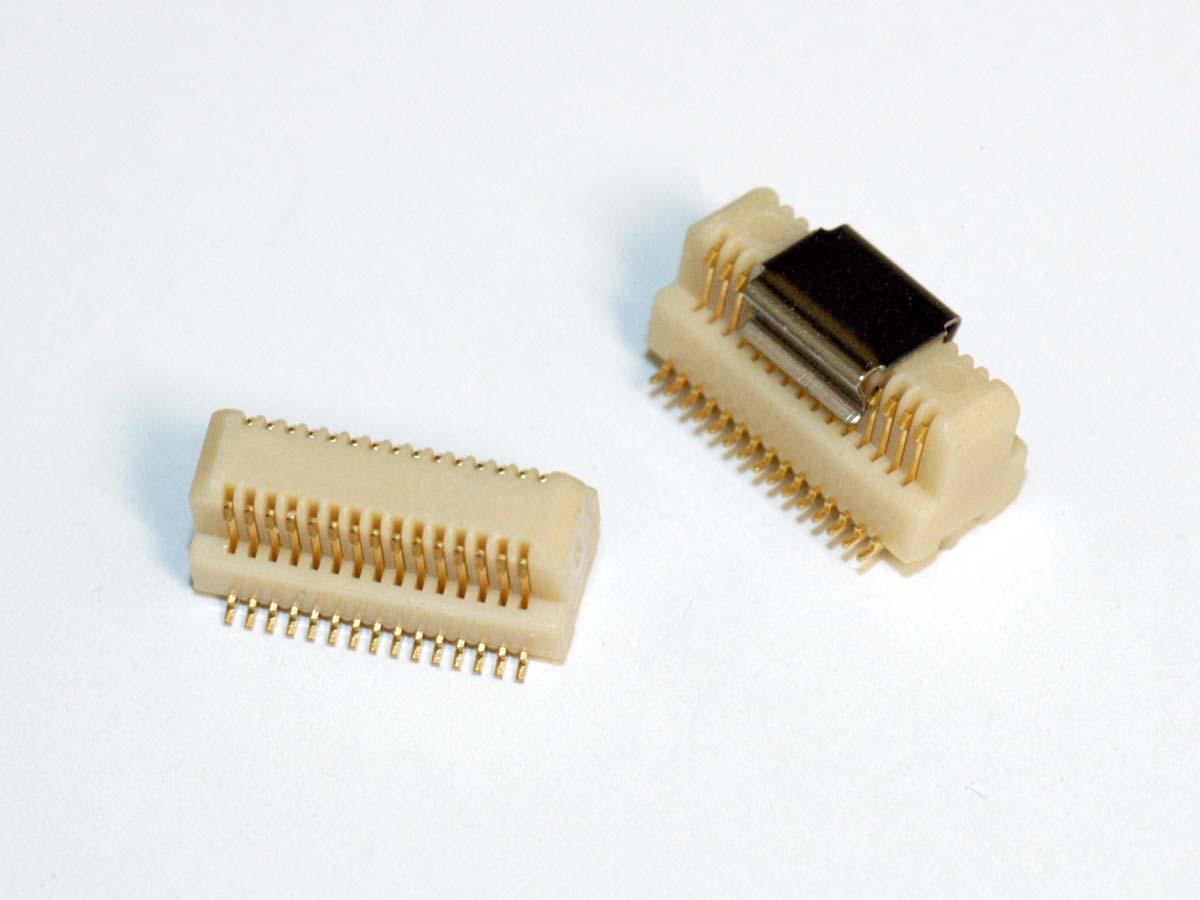

Micro Pitch Interconnect Plug - MPAS8

Micro Pitch Interconnect Plug – MPAS8

Micro Pitch Interconnect Plug – MPAS8

SKU: MPAS8 Categories: , Tag:

Micro Pitch Interconnect Plug 0.5mm – Micro Pitch Interconnect Plug

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 60m ohms max
Dielectric Withstanding: AC 500V
Contact Material: Phosphor Bronze
Operating Temperature: -40° ~ +85° C
Insulator Material: High Temperature Thermoplastic
Finish: Gold Plating
Finish: Gold Flash All Over

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Male
Contact Plating: Gold Flash – 30u
Locating Peg: with or without
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: MPad & Reel
Packaging: MPad & Tube
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
