Micro Pitch Interconnect Socket - MPBR2

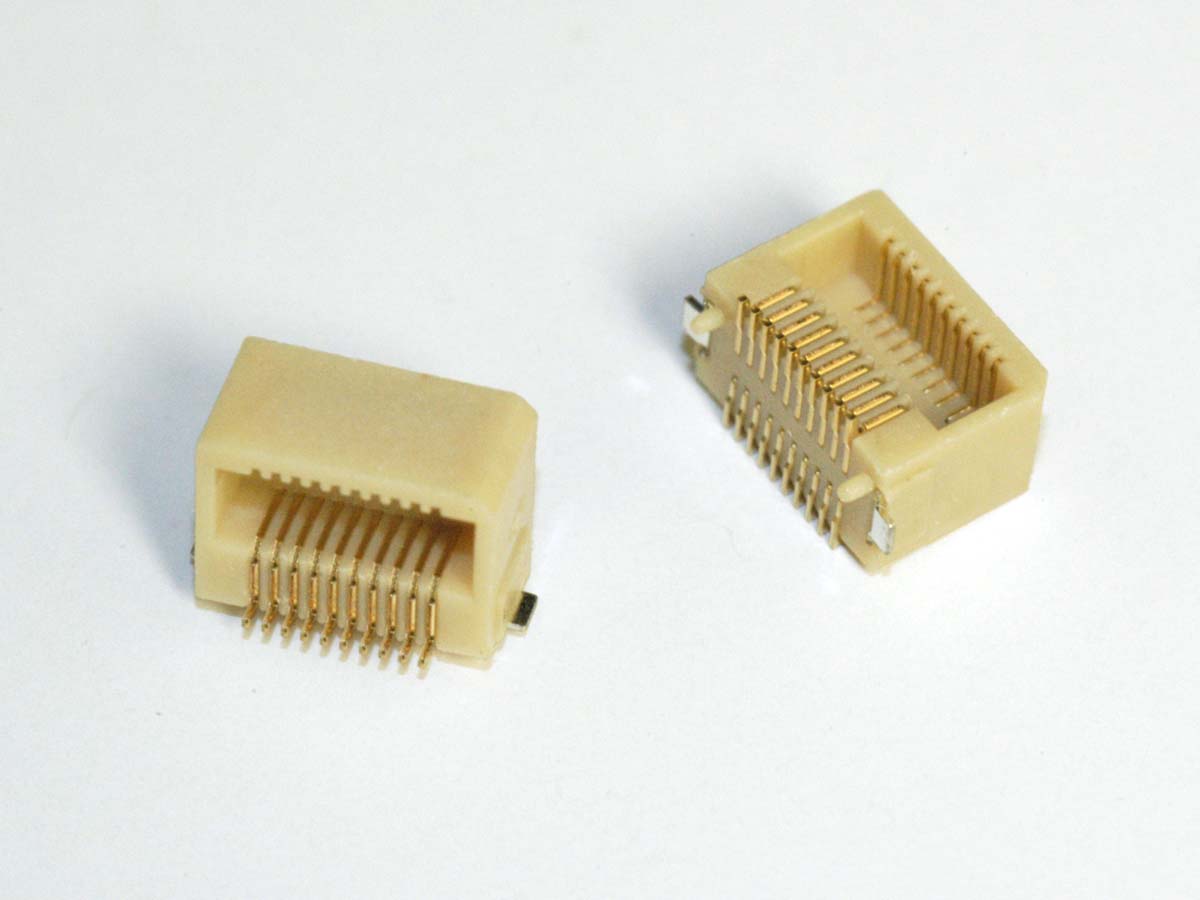

Micro Pitch Interconnect Socket – MPBR2

Micro Pitch Interconnect Socket – MPBR2

SKU: MPBR2 Categories: , Tag:

Micro Pitch Interconnect Socket 0.5mm – Micro Pitch Interconnect Socket

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.3 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 60m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +85° C
Contact Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic
Finish: Gold Plating
Finish: Gold Flash All Over

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Female
Contact Plating: Gold Flash – 30u
Locating Peg: with or without
Packaging: Reel(w/o Film)
Mount Type: Right Angle
Solder Type: Surface Mount (SMT)
Color: Natural

Technical Sheets

Download PDF
Download CAD
