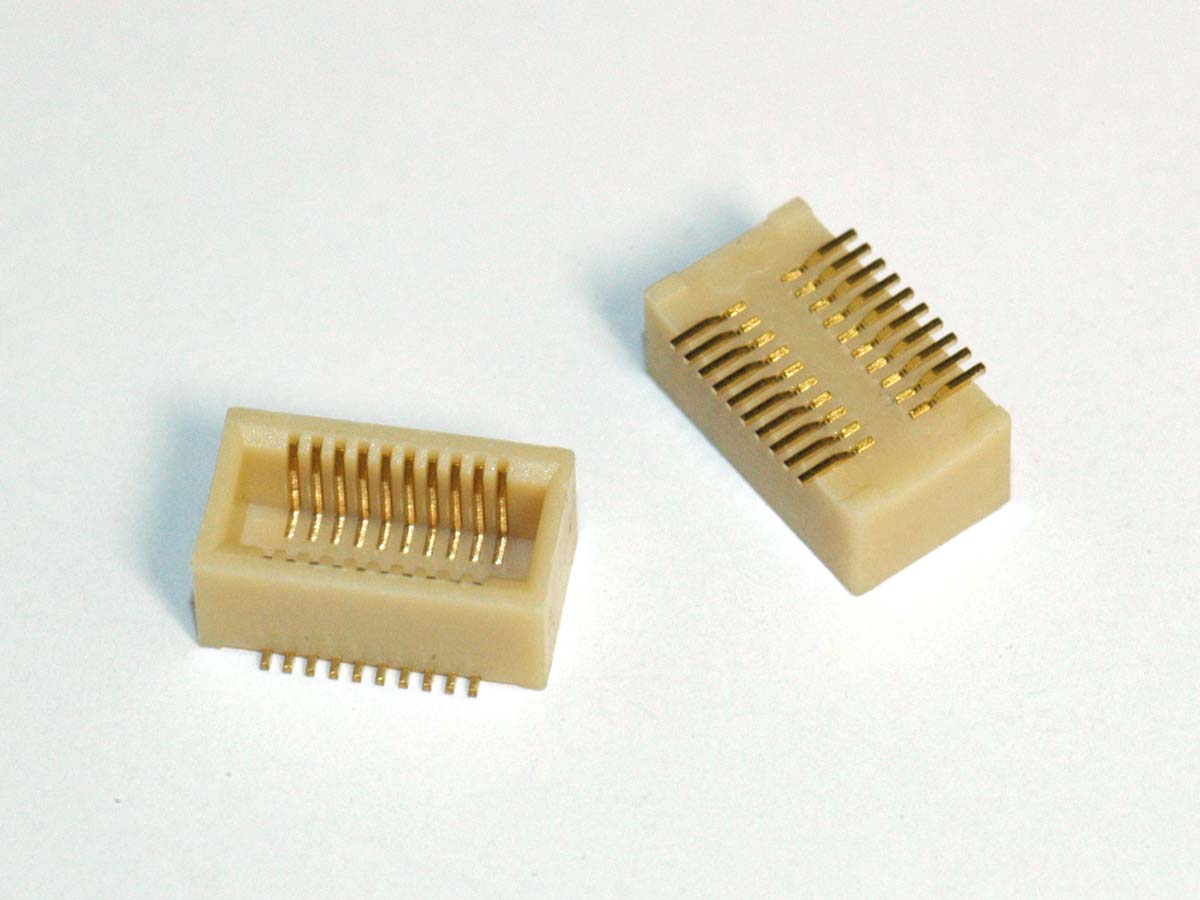

Micro Pitch Interconnect Socket - MPBS1

Micro Pitch Interconnect Socket – MPBS1

Micro Pitch Interconnect Socket – MPBS1

SKU: MPBS1 Categories: , Tag:

Micro Pitch Interconnect Socket 0.8mm – Micro Pitch Interconnect Socket

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 60m ohms max
Dielectric Withstanding: AC 500V
Durability: 30 Cycles Min.
Contact Retention: 150g Min. Per Contact
Extraction Force: 11g Min. Per Contact
Insertion Force: 110g Max Per Contact
Finish: Gold Plating
Finish: Gold Flash All Over

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Female
Contact Plating: Gold Flash – 30u
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Film & Reel
Packaging: MPad & Reel
Packaging: MPad & Tube
Color: Natural
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
