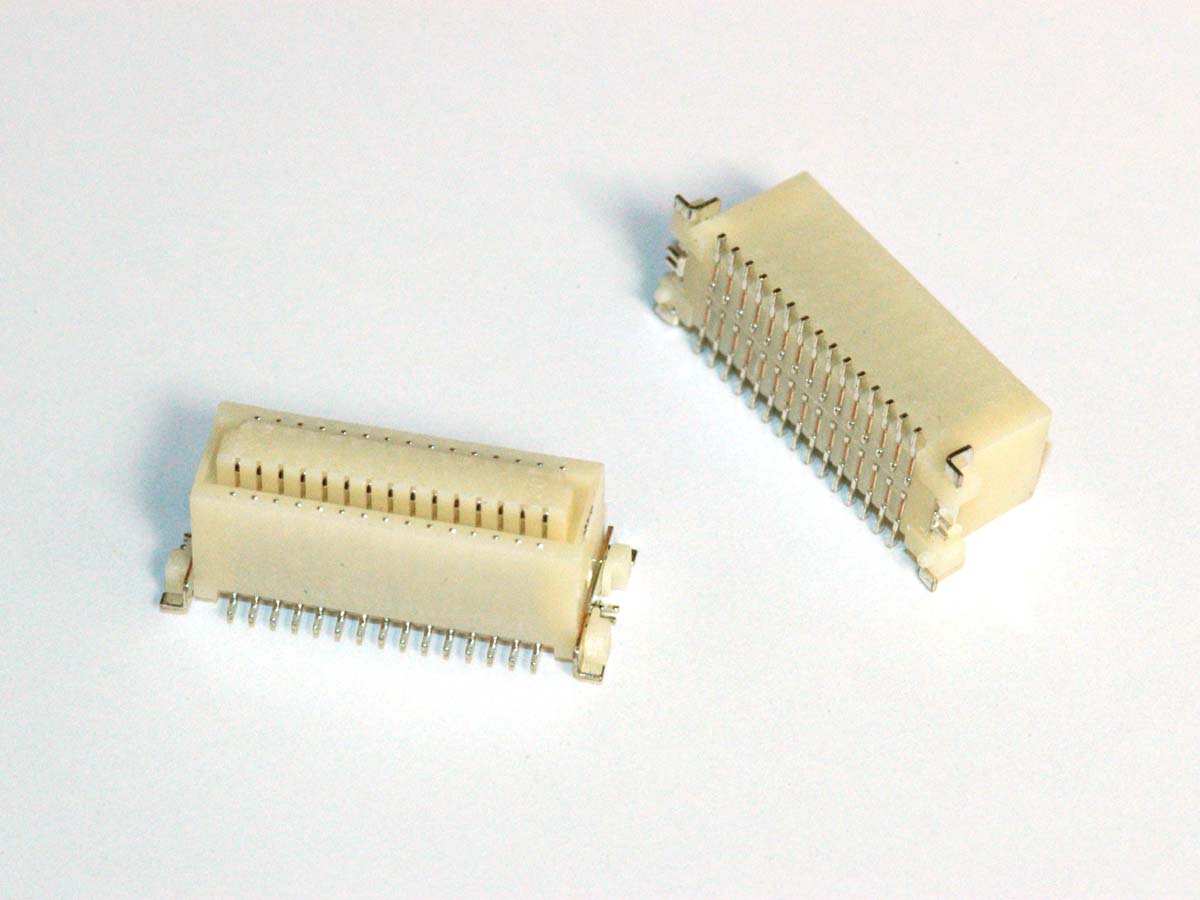

Micro Pitch Interconnect Plug – MPQ8

SKU: MPQ8 Categories: Board to Board, Plug Tag: 0.8mm

Description
Reviews (0)

Micro Pitch Interconnect Plug 0.8mm – Micro Pitch Interconnect Plug

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 0.5 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 70m ohms max
Dielectric Withstanding: AC 500V
Voltage Rating: 50V
Operating Temperature: -40° ~ +85° C
Contact Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Male
Contact Plating: Gold Flash – 30u
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Packaging: Film + Tube
Packaging: MPad & Tube
Packaging: MPad & Reel
Material Compliance: With Halogen
Material Compliance: Halogen Free
Mount Type: Straight
Solder Type: Surface Mount (SMT)
