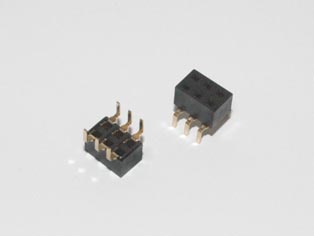

Female Dual Entry Socket - PBFX

Female Dual Entry Socket – PBFX

Female Dual Entry Socket – PBFX

SKU: PBFX Categories: , Tags: ,

Female Dual Entry Socket Dual Row 2.54mm – Female Dual Entry Socket

Application & Features

PCB Motherboard
Digital Process Meters and Scales
Gaming Systems
PCB Motherboard
High Reliability
Home Automation

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: RoHS2 Directive 2011/65/EU
Contact Plating: Gold, Duplex, and Standard Gold Flash
Gender: Female
Pin Width: Other Widths Available
Pin Length : Other Lengths Available
Mount Type: Dual Entry

Technical Sheets

Download PDF
Download CAD
