Female Side Entry Header Socket - PCFY

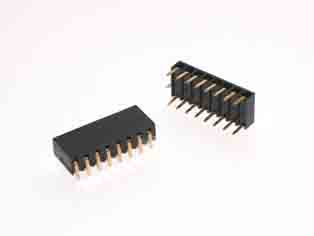

Female Side Entry Header Socket – PCFY

Female Side Entry Header Socket – PCFY

SKU: PCFY Categories: , Tags: ,

Female Side Entry Header Socket Dual Row 2.54mm – Female Side Entry Header Socket

Application & Features

PCB Motherboard
Digital Process Meters and Scales
Gaming Systems
PCB Motherboard
High Reliability
Home Automation

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 1000V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – PBT
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: RoHS2 Directive 2011/65/EU
Contact Plating: Gold, Duplex, and Standard Gold Flash
Gender: Female
Mounting Type: Side Entry

Technical Sheets

Download PDF
Download CAD
