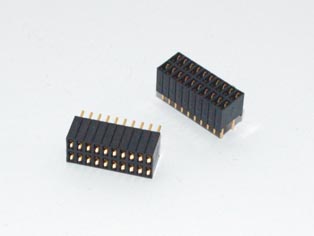

Female Header Dual Socket - PRSZ

Female Header Dual Socket – PRSZ

Female Header Dual Socket – PRSZ

SKU: PRSZ Categories: , Tags: ,

Female Header Dual Socket Dual Row 1.27mm – Female Header Dual Socket

Application & Features

Aeuronautics
Public Traffic Lights and Safety
PCB Motherboard
Security
Industrial Controller Boards
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin, Duplex Tin/Gold, Gold
Pin Length : Other Lengths Available
Type: Dual

Technical Sheets

Download PDF
Download CAD
