Panel Mount Terminal Block Pluggable Header with Flange - RPEA-3.81

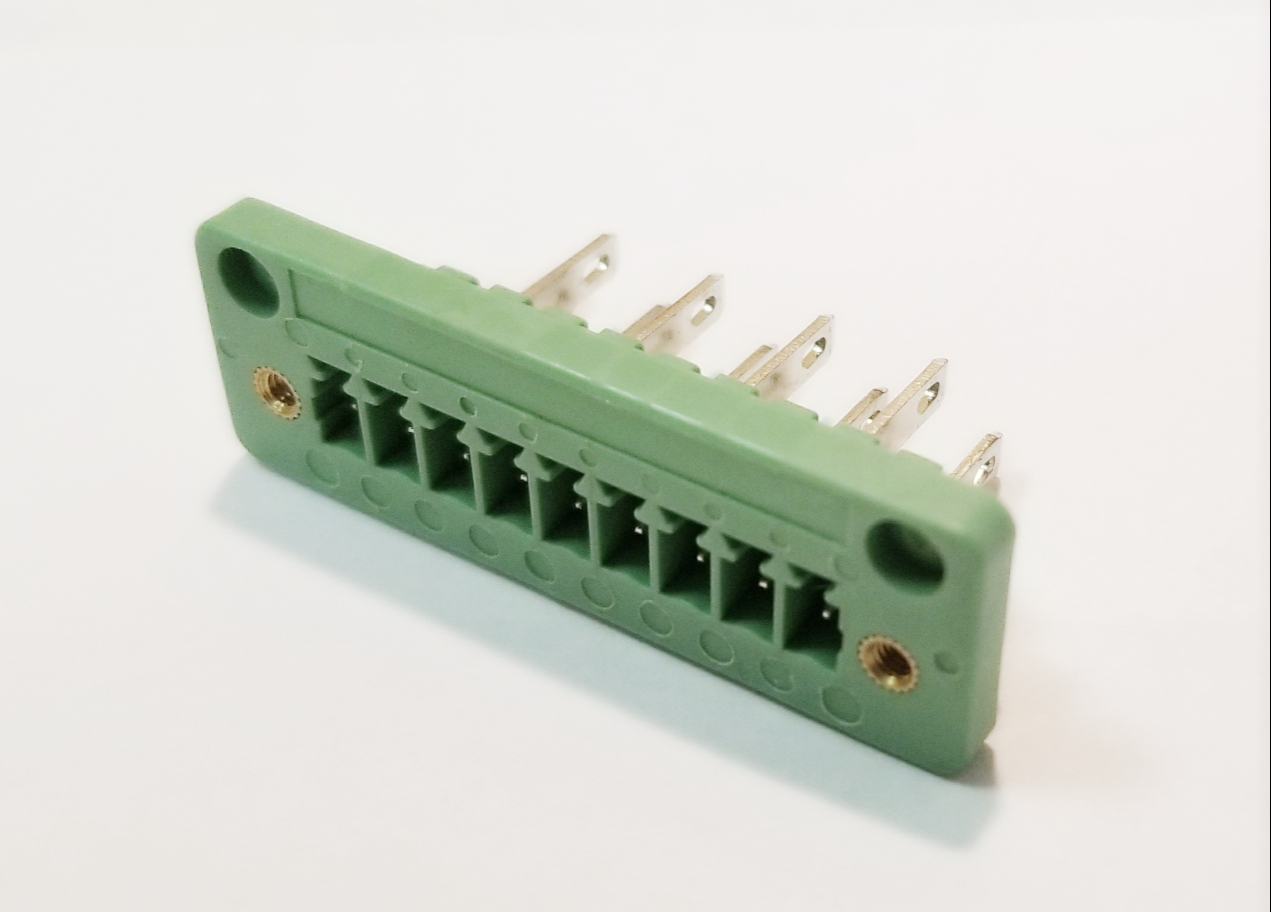

Panel Mount Terminal Block Pluggable Header with Flange – RPEA-3.81

Panel Mount Terminal Block Pluggable Header with Flange – RPEA-3.81

SKU: RPEA-3.81 Categories: , Tags: ,

Panel Mount Terminal Block Pluggable Header with Flange Single Row 3.81mm – Panel Mount Terminal Block Pluggable Header with Flange

Application & Features

Automation Systems
Power Converters, Interface Modules and Devices
Medical Instrumentation
HVAC equipment and controls
Digital Process Meters and Scales
Security

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Insulator Material: Thermoplastic
Current Rating: 10 Amps
Voltage Rating: 300V
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: Brass with Tin Plating
Flange Screw: Brass, M2.5

Options

Green Options: Pb<40000ppm
Design Feature: Easy Solder Tab Access
Design Feature: Integrated Screw Holes
Design Feature: Convenient Panel Mounting
Design Feature: Polarized to Ensure Proper Mating
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), Green (RAL6018/U)

Technical Sheets

Download PDF
Download CAD
