Terminal Block Header - RPEO

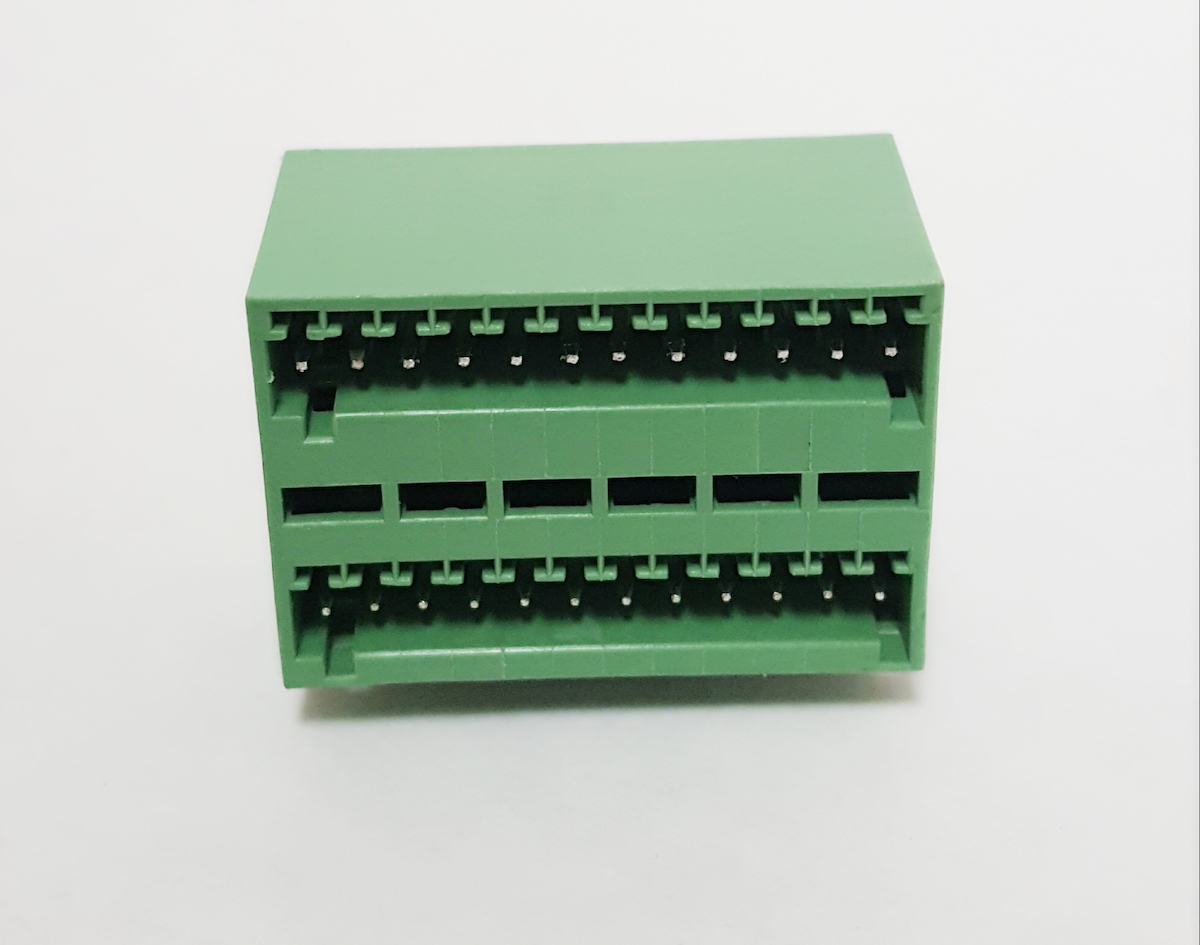

Terminal Block Header – RPEO

Terminal Block Header – RPEO

SKU: RPEO Categories: , Tags: ,

Terminal Block Header Dual Row 2.5mm – Terminal Block Header

Application & Features

Data/Communications
Embedded control units
HVAC equipment and controls
Home Automation
Security
Industrial Equipment

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 4 Amps
Voltage Rating: 125V AC
Withstanding Voltage: 1.25KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Solder Pin: Copper with Tin Plating
Insulator Material: Thermoplastic

Options

Green Options: Pb<40000ppm
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)
Mounting Type: Pluggable
Mount Type: Right Angle
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
