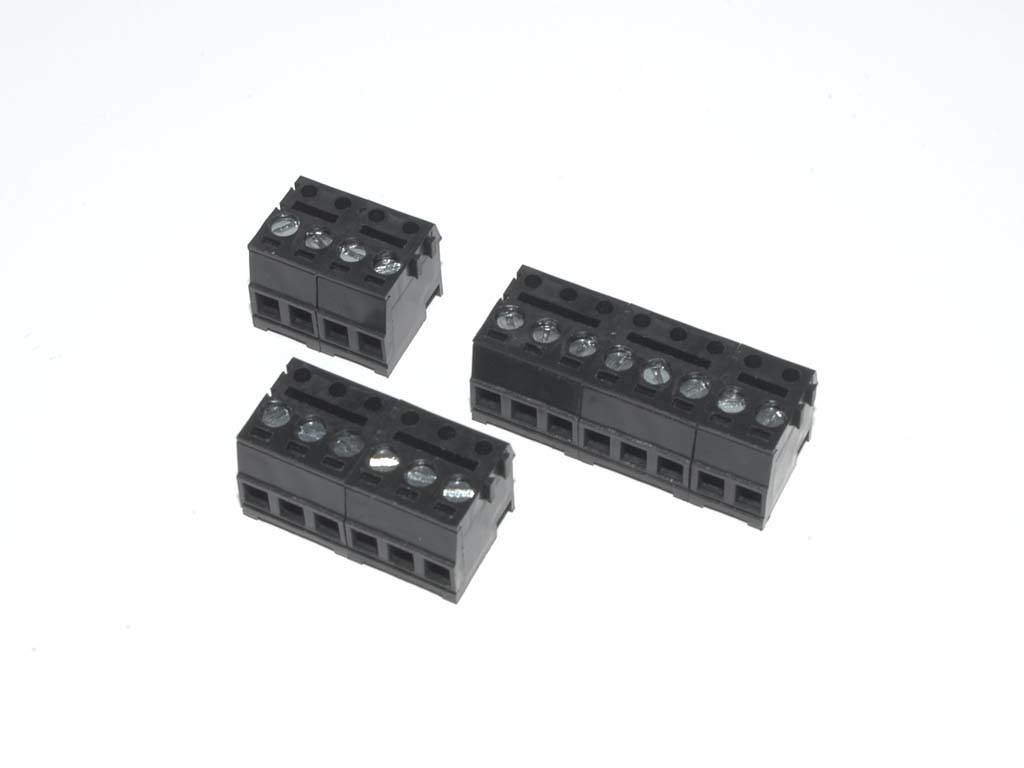

Terminal Block Pluggable Plug – RPGC-5.0

Terminal Block Pluggable Plug – RPGC-5.0

SKU: RPGC-5.0 Categories: , Tags: ,

Terminal Block Pluggable Plug Single Row 5mm – Terminal Block Pluggable Plug

Application & Features

Solar Power
Power Converters, Interface Modules and Devices
Industrial Controller Boards
HVAC equipment and controls
Harsh Environments
Security

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 10 Amps
Voltage Rating: 300V AC
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 12-26
Torque: 3.5 in-lb/M3
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: RoHS (lead<4%) in Copper Alloy
Mounting Type: Pluggable
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)

Technical Sheets

Download PDF
Download CAD
