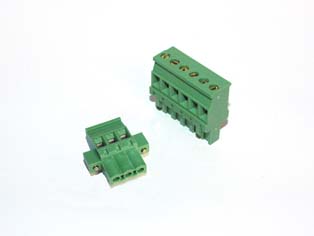

Pluggable Terminal Block Side Entry Screw & Clamp Type Single Row 5.08mm – Pluggable Terminal Block Side Entry Screw & Clamp Type
Application & Features
Appliances
Electrical Outlets and Switches to Main
Ground Connections
Security
Lighting
Power Converters, Interface Modules and Devices
Specifications
Safety Approval: cRUs, TUV and VDE
Flame Rating: UL 94V-0
Current Rating: 15 Amps (cRUus), 17 Amps (TUV), 15 Amps (VDE)
Voltage Rating: 300V (cULus) 300V (VDE) 300V (TUV)
Withstanding Voltage: 1.6KV (cULus) 2.5KV (VDE) 2.5KV (TUV)
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Insulator Material: Thermoplastic
Wire Range: 2.5mm²-0.34-2.5mm²
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 12-24
Torque: 3.5Lb-In/0.5Nm/0.4Nm, M3
Clamp: Brass (CuZn) Ni Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Flange Screw: Steel Zinc plating M2.5 “+/-” slot type
Options
Green Options: Pb<40000ppm
Mounting Type: Pluggable
Body Type: With or Without Flange
Flange Screw: Steel M2.5 Zinc Plating “+/-” Slot Type
Mounting Type: Side Entry
Hook: Hook Option 1 on Entry Side
Hook: Hook Option 2 on Back Entry Side
Hook: With Flange Hook Option 3 on Entry Side
Hook: With Flange Hook Option 4 on Back Side
CP: Custom Printing
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)
Matings
Technical Sheets
Download Without Flange PDF Download With Flange PDF Download Without Flange PDF Download With Flange PDF
Download Without Flange CAD Download With Flange CAD Download Without Flange CAD Download With Flange CAD
