Terminal Block Pluggable - RPSD-2.5

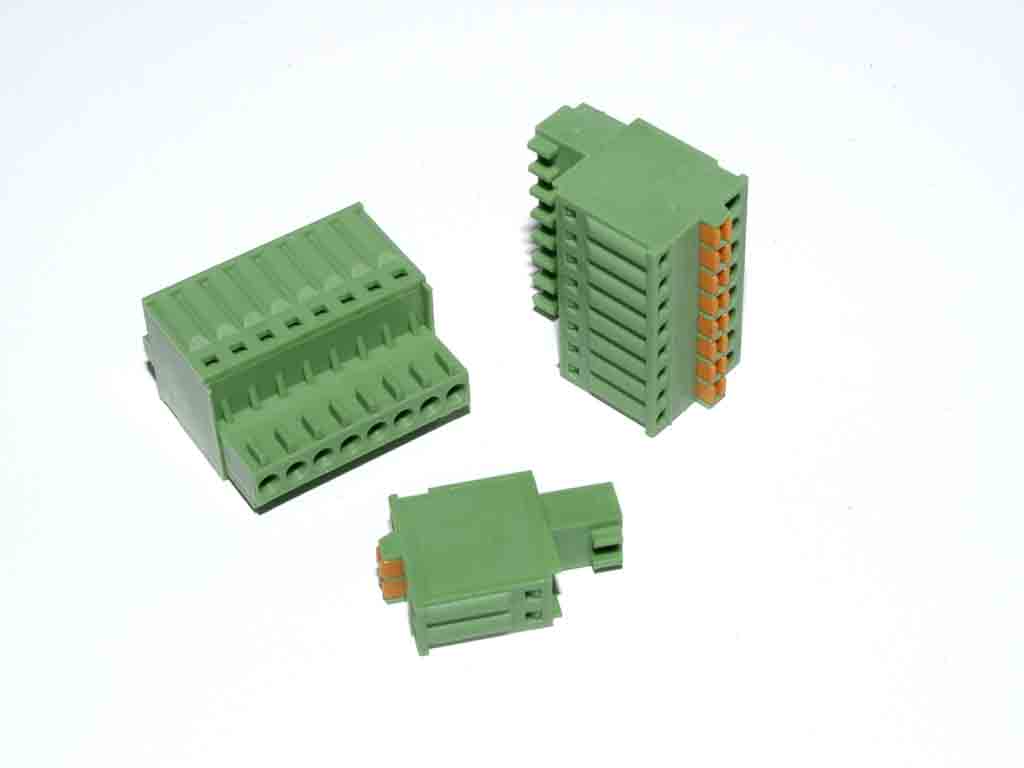

Terminal Block Pluggable Plug – RPSD-2.5

Terminal Block Pluggable Plug – RPSD-2.5

SKU: RPSD-2.5 Categories: , Tags: ,

Terminal Block Pluggable Plug Single Row 2.5mm – Terminal Block Pluggable Plug

Application & Features

Embedded control units
Test & Measurement Equipment
Medical Instrumentation
Power Supplies
Security
HVAC equipment and controls

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Insulator Material: Thermoplastic
Voltage Rating: 150V
Current Rating: 4 Amps
Withstanding Voltage: 1.3KV
Contact Material: PhBz, Tin Plated
Wire Guard Material: Stainless Steel
Wire Strip Length: 7-8mm
Wire : Stranded/Solid (AWG) 20-28

Options

Green Options: Pb<40000ppm
Mount Type: Straight
Color: Black, Green, Blue, Grey

Technical Sheets

Download PDF
Download CAD
