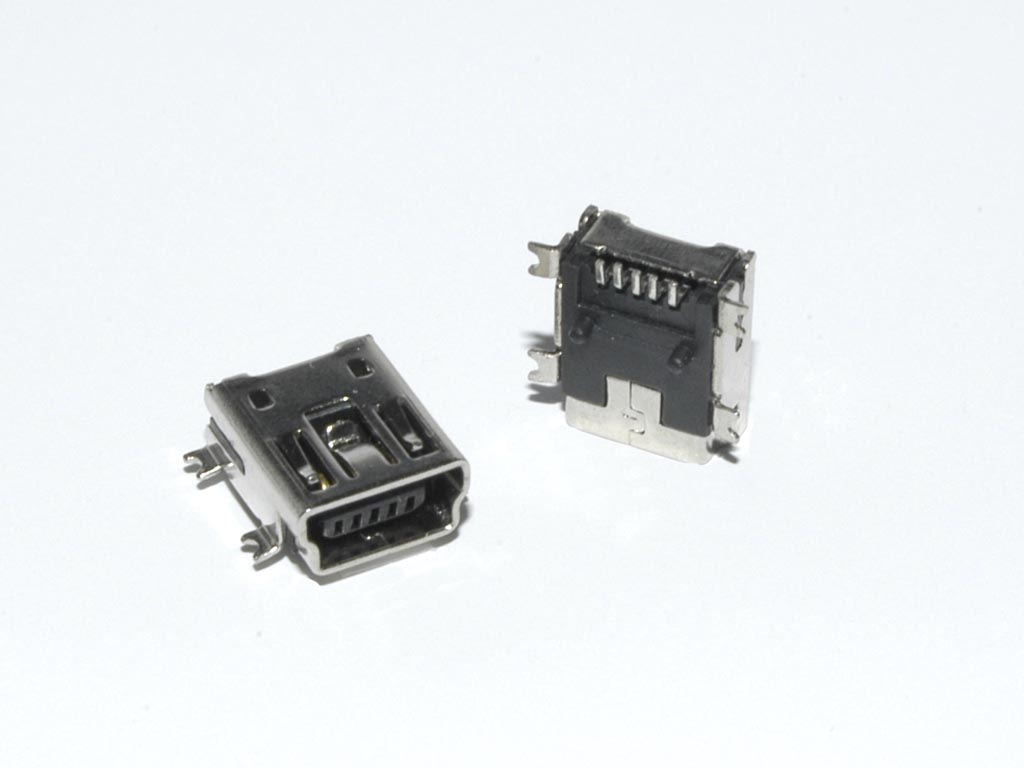

Mini USB 2.0 SMT - SBPOM

Mini USB 2.0 SMT – SBPOM

Mini USB 2.0 SMT – SBPOM

SKU: SBPOM Categories: , Tags: ,

Mini USB 2.0 SMT Single Row 0.8mm – Mini USB 2.0 SMT

Application & Features

Mobile Devices
Gaming Systems
Industry Standard
Notebook and Mobile Computing Applications
PCB Motherboard
Exercise Equipment

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 100 Megohms min @ 500 VDC
Contact Resistance: 50m ohms max
Dielectric Withstanding: AC 100V
Mating Cycles: 1500
Insertion Force: 35N Max
Extraction Force: 7N Min.

Options

Green Options: RoHS Complaint
Type: Mini USB
Contact Plating: Gold Flash – 30u
Gender: Female
Shell Plating: Nickel
Mount Type: Right Angle
Color: Black
Solder Type: Surface Mount (SMT)
Packaging: Tape & Reel (T&R)

Technical Sheets

Download PDF
Download CAD
