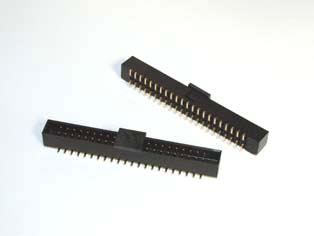

Shrouded Box Header SMT - SMBH

Shrouded Box Header SMT – SMBH

Shrouded Box Header SMT – SMBH

SKU: SMBH Categories: , Tags: ,

Shrouded Box Header SMT Dual Row 2mm – Shrouded Box Header SMT

Application & Features

Data/Communications
Embedded control units
Industrial Controller Boards
PCB Motherboard
Public Traffic Lights and Safety
Test & Measurement Equipment

Specifications

Flame Rating: UL 94V-0
Current Rating: 2 Amps
Voltage Rating: 100V AC/DC
Insulator Resistance: 1000 Megohm min
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 260°C +/- 10℃ /5Sec
Contact Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic
Insulator Material: Nylon 9T
Finish: Gold Flash Full Pin

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Gender: Male
Polarization: Keyed
Mount Type: SMT
Insulator Color: Black
Mount Type: Solder
Packaging: Cap+Tube
Packaging: Cap+Tape & Reel

Technical Sheets

Download PDF
Download CAD
