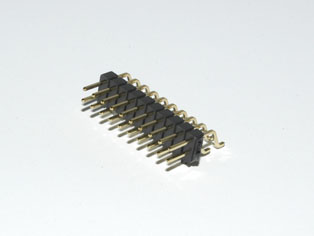

SMT Pin Header - SNBHZ

SMT Pin Header – SNBHZ

SMT Pin Header – SNBHZ

SKU: SNBHZ Categories: , Tags: ,

SMT Pin Header Dual Row 2.54mm – SMT Pin Header

Application & Features

Digital Process Meters and Scales
Industrial Equipment
Embedded control units
Medical Instrumentation
Measuring Devices
Robotics

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 10 seconds)
Contact Material: Brass
Insulator Material: High Temperature Thermoplastic
Insulator Material: Nylon-6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: RoHS Complaint
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Locating Peg: with or without
Mount Type: Right Angle
Solder Type: Surface Mount (SMT)
Pin Options: Other Angle Hieghts Avail.

Technical Sheets

Download PDF
Download CAD
