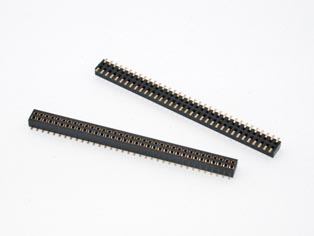

Female SMT Header Socket - SPNBF

Female SMT Header Socket – SPNBF

Female SMT Header Socket – SPNBF

SKU: SPNBF Categories: , Tags: ,

Female SMT Header Socket Dual Row 1.27mm – Female SMT Header Socket

Application & Features

Automotive
Public Traffic Lights and Safety
PCB Motherboard
Security
Industrial Controller Boards

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Voltage Rating: 30V AC
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester
Insulator Material: Nylon-6T
Finish: Gold Plating
Finish: Gold Flash All Over

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Locating Peg: with or without
Packaging: MPad & Tube
Packaging: Pad
Mount Type: Right Angle

Technical Sheets

Download PDF
Download CAD
