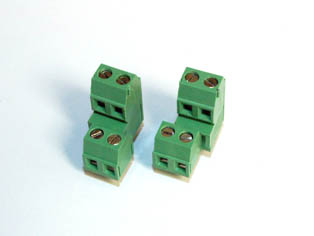

Dual Level Right and Left Screw Terminal Blocks - TBBJ-3.81

Dual Level Right and Left Screw Terminal Blocks – TBBJ-3.81

Dual Level Right and Left Screw Terminal Blocks – TBBJ-3.81

SKU: TBBJ-3.81 Categories: , Tag:

Dual Level Right and Left Screw Terminal Blocks 3.81mm – Dual Level Right and Left Screw Terminal Blocks

Application & Features

Saves Space and Simplifies Wiring
Increased Circuit Flexibility
High Reliability
Industrial Controller Boards
Increased Circuit Flexibility
Automation Control

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Max Processing Temp: 250°C +/- 10℃ /5Sec
Operating Temperature: -40° ~ +115° C
Solder Pin: Brass with Tin Plating
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length : 5-6mm
Wire Size Accepted: 16-24 AWG
Torque: 1.7Lb-In/0.2Nm, M2
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: Pb<40000ppm
Color: Black, Green, Blue, Grey
Mount Type: Dual Level Shift

Technical Sheets

Download Left Shift PDF
Download Right Shift PDF
Download Left Shift CAD
Download Right Shift CAD
