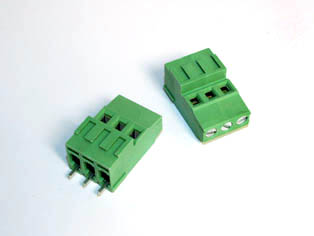

Solid Block 2nd Level Terminal Block 5.08mm – Solid Block 2nd Level Terminal Block
Application & Features
Saves Space and Simplifies Wiring
Increased Circuit Flexibility
Industrial Equipment
Automation Systems
Automotive
Electrical Devices
Specifications
Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Max Processing Temp: 250°C +/- 10℃ /5Sec
Operating Temperature: -40° ~ +115° C
Solder Pin: Brass with Tin Plating
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 12-24
Torque: 3.5Lb-In, M2.5
Options
Green Options: Pb<40000ppm
Color: Black, Green, Blue, Grey
Design Feature: Raised level PCB terminal blocks position wiring above PCB and over components
Design Feature: Reliable rising clamp wire termination
Design Feature: Raised level PCB terminal blocks position wiring above PCB and over components
Mounting Type: Pluggable
