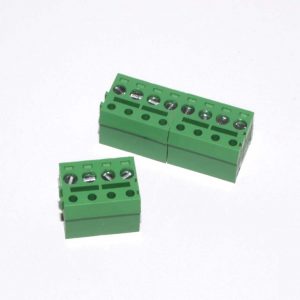

One Piece Rising Clamp Screw Terminal Blocks 5.08mm – One Piece Rising Clamp Screw Terminal Blocks
Application & Features
Robotics
HVAC equipment and controls
High Reliability
Motor & Power Controls
Industrial Equipment
International Standard
Specifications
Safety Approval: cRUus, VDE
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV (cRUus), 2KV (VDE)
Operating Temperature: -40° ~ +115° C
Wire Guard Material: phBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Range: 0.2-2.5mm
Wire Strip Length: 6-7mm
Wire: Stranded/Solid (AWG) 14-26
Torque: 3.5Lb-In/0.4Nm, M2.6
Termianl Body: Brass
Options
Green Options: RoHS (lead<4%) in Copper Alloy
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D), White (RAL1102), Green (RAL6018/U)
Mount Type: 45 Degree Angle
Download PDF
Download CAD
