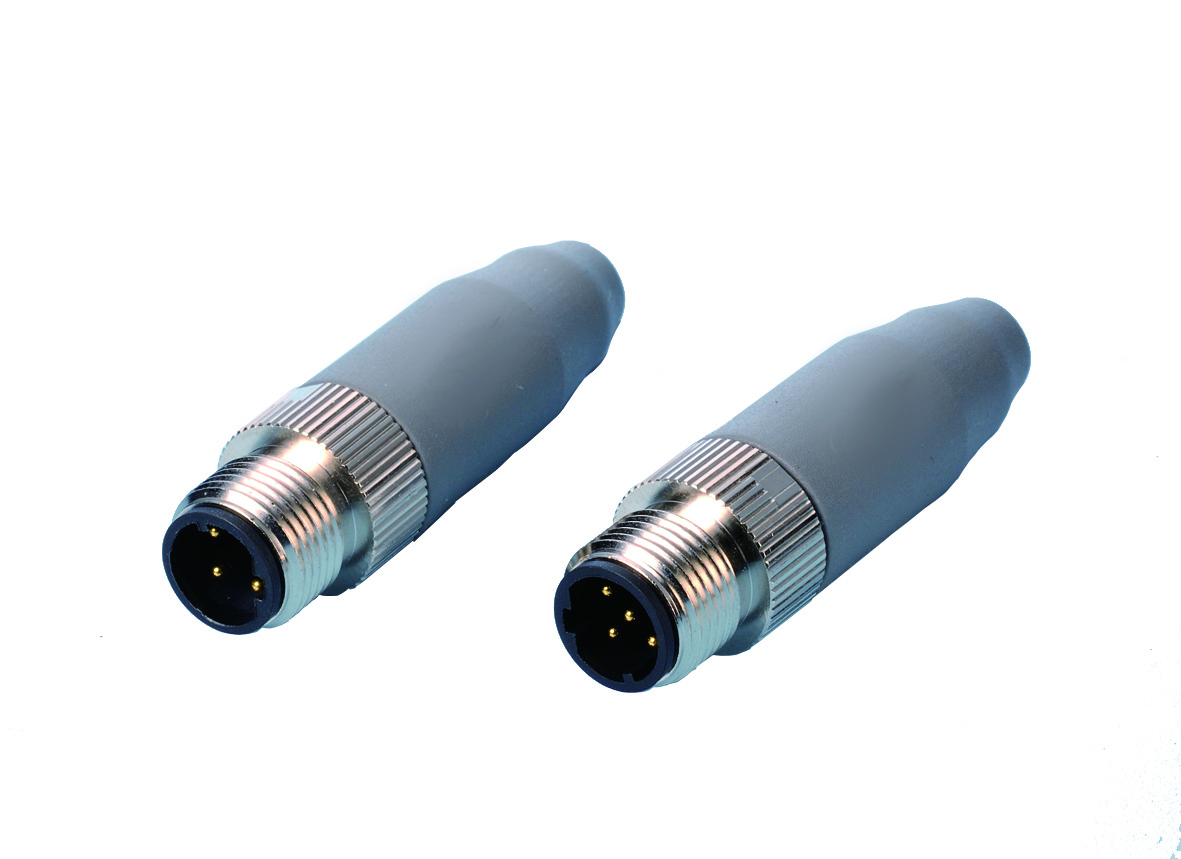

M12 Male Sheilded Type - WHS

M12 Male Sheilded Type – WHS

M12 Male Sheilded Type – WHS

SKU: WHS Categories: ,

M12 Male Sheilded Type M12 Male Sheilded Type

Application & Features

Factory Automation
Communications
Medical Electronics
Transportation
Industrial Equipment & Tools
Commercial

Specifications

Flame Rating: UL 94V-0
Contact Material: Brass
Shell Material: Brass
Contact Underplate: 50u”~100u” Nickel
Contact Area: 1u”~15u” Gold
Solder Tail Plating: 1u” Gold
Current Rating: 2 Amps
Contact Resistance: 5 ohms Max
Insulator Resistance: 100 Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -20° ~ +85° C

Options

Green Options: RoHS (Bright)
Pin Type: Solder Pin
Pin Type: Crimp Pin
Contact Plating: Gold
Solder Tails: Gold
Apply Type: Solder 180°
Shell Plating: Nickel
Packaging: In Bag
Color: Black

Technical Sheets

Download PDF
Download CAD
