SMT Pin Header - SPNZ

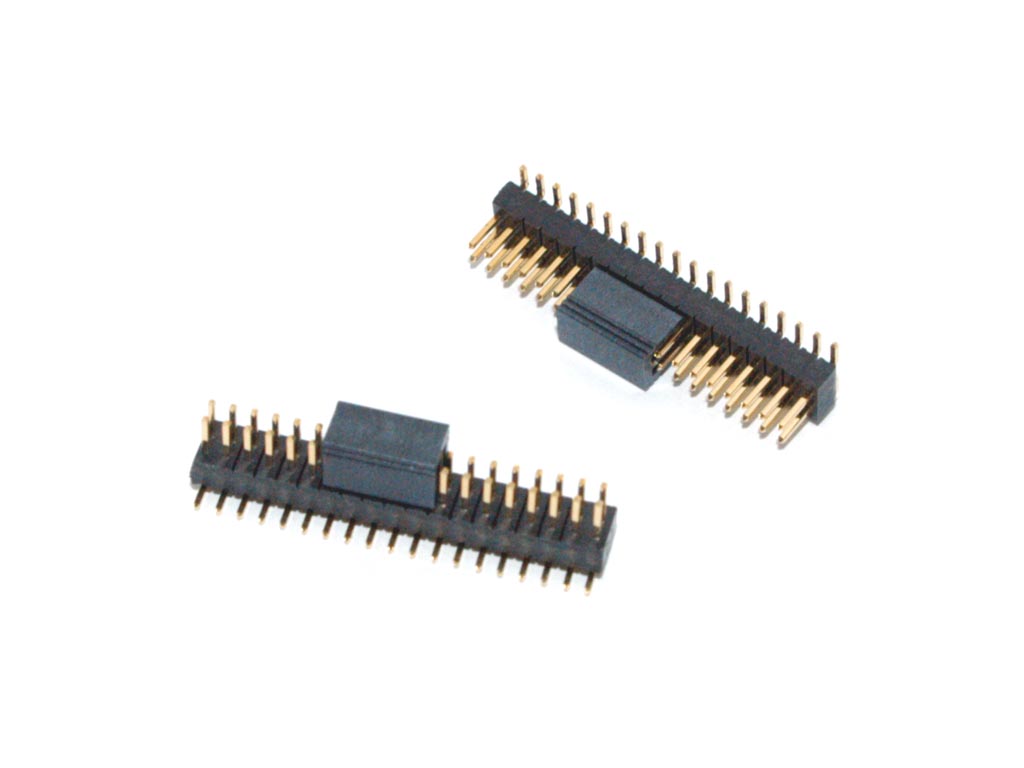

SMT Dual Row Pin Header – SPNZ

SMT Dual Row Pin Header – SPNZ

SKU: SPNZ Categories: , Tags: ,

SMT Dual Row Pin Header Dual Row 1.27mm – SMT Dual Row Pin Header

Application & Features

Automotive
Test & Measurement Equipment
Gaming Systems
Data/Communications
Pin Width and Pin Lengths Options
Multiple Height Options

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 300V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Insulator Material: Liquid Crystal Polymer
Finish: Gold Plating

Options

Green Options: RoHS Complaint
Mount Type: Straight
Solder Type: Surface Mount (SMT)
Locating Peg: with or without
Contact Plating: Gold Flash – 30u
Color: Black
Packaging: Cap+Tape & Reel
Packaging: Cap+Tube
Packaging: Tube
Packaging: Tape & Reel (T&R)

Matings

SPRMZ SPANF SPNBF
